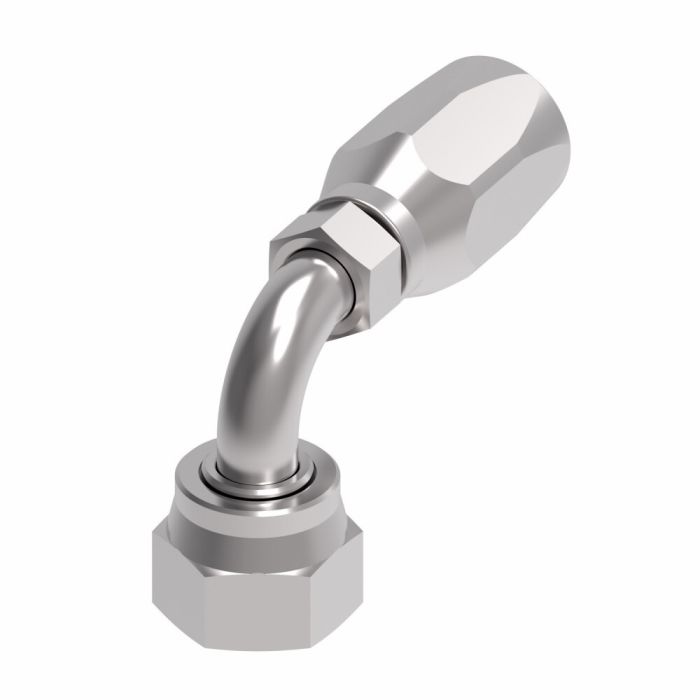

Aeroquip Reusable FTGS - Code

Ask A Question

Description & Features

A carbon steel fitting designed for reliable hydraulic hose connections, the Aeroquip Reusable FTGS - Code is a -20 dash size, 90° short elbow swivel fitting with a female pipe thread (FPT) end and a 1.75 inch hex on the hose end. The reusable design supports faster assembly and reduces downtime in high-use environments where fittings may need to be replaced or reconfigured without discarding the hose.

Built to fit a wide range of hydraulic hose applications, this fitting offers dependable performance in demanding industrial service. The short elbow configuration suits installations where space is limited and routing flexibility is needed. At 0.79 lb, it is a compact assembly with a 1.91 inch width and a 2.51 inch drop dimension.

SKU: FJ9708-2020S

Supplier Part Number (MPN): FJ9708-2020S

Alternate Part Numbers: C1EU68

Specifications

a Dimensions
4.02 in
Compatible Hose ID
1-1/4 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Reusable
Cut-Off Factor
2.65 in
Dimensions
4.95 in L x 1.91 in W x 3.96 in H
Drop Dimensions
2.51 in
End Gender 1
Female
End Size 1
20
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
Hex Size
1-7/8 in
Hose Dash Size
20
Inside Diameter
1.05 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Reusable Socket Hex Size
45 mm
Segment Code
C
Series
FJ9708 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-11/16-12
Thread Type
UN

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Hubert E on May 26, 2025, 10:16 AM
trying to swap out an old elbow fitting, is this one the -20 dash 90 degree short elbow with female pipe thread on one end?
Answer by: Customer Support on May 27, 2025, 8:46 PM
For fit confirmation, you are looking at a -20 dash size, 90 degree short elbow swivel fitting with a female pipe thread (FPT) end, and the other end is the line hose tube connection with a 1.75 inch hex.
Question by: Connie M on Sep 30, 2025, 7:54 PM
What kind of hoses will this fitting work with? I just want to make sure it's the right size.
Answer by: Customer Support on Oct 1, 2025, 9:36 PM
This fitting is designed to work with -20 dash size hoses, ensuring a secure and dependable connection for your hydraulic system.
Question by: Tony B on Jun 1, 2025, 9:57 AM
got a tight routing situation on a skid steer and need a 90 elbow that won't stick out too far, this the right kind of fitting for that?
Answer by: Customer Support on Jun 2, 2025, 5:14 PM
For tight quarters, the short elbow configuration on this fitting is exactly what you'd want. The drop dimension comes in at 2.51 inches and the width sits at 1.91 inches, so it stays compact enough to work in confined routing situations. The 90-degree angle lets you redirect the hose without needing a long sweep, which helps a lot when clearance is the main concern.
