AEROQUIP FITTING

Description & Features

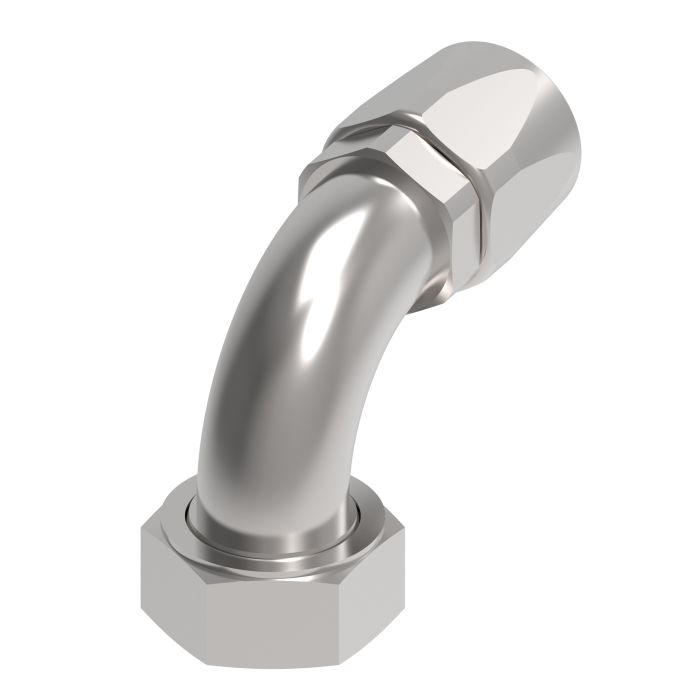

This Aeroquip fitting features a 90˚ short elbow and an ORS swivel. Constructed from carbon steel, this fitting is durable and dependable, suitable for a wide range of applications.

It has a female FPT end with a size of 2 and a hose dash size of -24. This fitting assembly is designed to cut assembly times and boost production.

SKU: FJ9708-2424S

Supplier Part Number (MPN): FJ9708-2424S

Specifications

a Dimensions 4.42 in	Compatible Hose ID 1-1/2 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Reusable	Cut-Off Factor 2.96 in	Dimensions 5.54 in L x 2.25 in W x 4.25 in H	Drop Dimensions 2.7 in	End Gender 1 Female	End Size 1 2 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With 302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses	Hex Size 2-1/4 in	Hose Dash Size 24	Inside Diameter 1.28 in	Material Steel	Material Construction Carbon Steel	Reusable Socket Hex Size 50 mm	Series FJ9708 Series	Thread Sealant Without Thread Sealant	Thread Size 2-12	Thread Type UN

Product Questions & Answers (1)

Question by: Kirk F on Sep 25, 2025, 2:25 PM

What size is the female FPT end on this Aeroquip fitting?

Answer by: Customer Support on Sep 26, 2025, 2:39 PM

It's a size 2 female FPT end.
