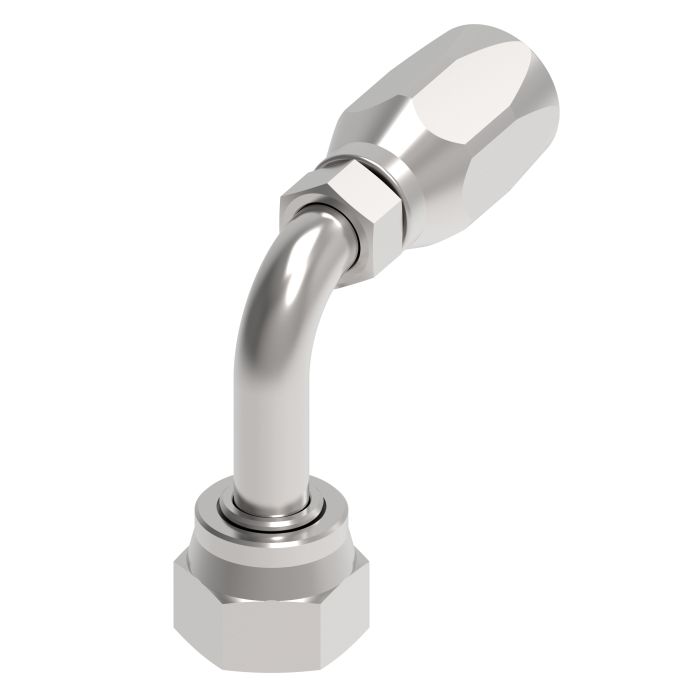

Aeroquip Reusable ORS FIT

Description & Features

The Aeroquip Reusable ORS FIT is suitable for a wide range of applications. This fitting assembly offers durable and dependable performance, cutting assembly times and boosting production.

Featuring a female ORS end type with a 0.6875 end size, this Aeroquip fitting also includes a -6 hose dash size and a line/hose/tube end type 2. Constructed from carbon steel, it has a 2.1300 drop dimension and a 0.81 hex size 2.

SKU: FJ9709-0606S

Supplier Part Number (MPN): FJ9709-0606S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2-1/4 in	Compatible Hose ID 0.38 in	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Reusable	Cut-Off Factor 1.35 in	Dimensions 0.22 in ID	Drop Dimensions 2 in	End Connection Torque 27 to 36 lb-ft	End Gender 1 Female	End Size 1 11/16 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355 and FC802 Series Hoses	Hex Size 0.81 in	Hose Dash Size 06	Inside Diameter 0.22 in	Material Steel	Material Construction Carbon Steel	Series FJ9709 Series	Thread Sealant Without Thread Sealant	Thread Size 11/16-16	Thread Type UN

Product Questions & Answers (1)

Question by: Kurt S on Mar 4, 2026, 11:47 AM

What size is that fitting, like the hex part where you tighten it?

Answer by: Customer Support on Mar 6, 2026, 8:22 AM

At its widest, the hex measures 0.81 inches.
