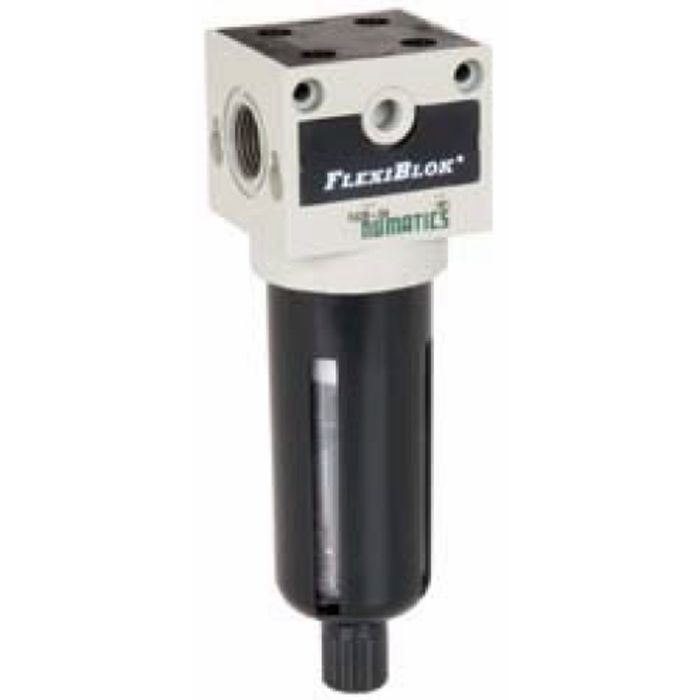

FlexiBlok Series Air Line Filter, 1/4 Inch Ports, 5 micron Element, 32 SCFM Flow Rating, 1.5 oz Bowl Capacity, Metal Manual Drain

Description & Features

Designed for compressed air line conditioning, this filter accepts 1/4 inch NPT ports and delivers a 32 SCFM flow rating with a 5 micron sintered element that removes water, dust, and debris with greater than 90% water removal efficiency at rated flow. The Numatics FlexiBlok Series Air Line Filter includes a 1.5 oz metal manual drain bowl and can be configured as a standalone unit or connected in modular arrangements using the included screws and O-rings. Bowl capacity and drain type make it well suited for installations requiring periodic manual servicing.

Operating temperature range is 40–120 °F. Metal bowl configurations support up to 200 psi inlet pressure. The Series 14 platform accommodates optional 40 micron elements and is compatible with the full FlexiBlok FRL component range, including regulators, lubricators, shutoff valves, and pressure switches. Dimensions are 5.94 inches high by 1.68 inches wide.

SKU: F14B-02Q

Supplier Part Number (MPN): F14B-02Q

Alternate Part Numbers: C1LB69

Specifications

Bowl Capacity 1.5 oz	Dimensions 5.94H x 1.68W	Drain Type Metal Manual	Brand Numatics - C/O Asco Lp	Brand Asco Lp Cylinder	Pack Size 1.00	UOM EA	Element 5 micron	Flow Rating (SCFM) 32	Port Size 1/4	Series 14	Supplier Part Number F14B-02Q	Alternate Part Numbers Alternate Part Number C1LB69	Product Weight 0.65 lbs

Similar Products

Model Number	Series	Flow Rating (SCFM)	Element	Drain Type	Bowl Capacity	Dimensions
F14B-02 FlexiBlok Series Air Line Filter	14	32	5 micron	Poly Manual	1.5 oz	5.94H x 1.68W
F14B-02M FlexiBlok Series Air Line Filter	14	32	5 micron	Poly Manual	1.5 oz	5.94H x 1.68W
F14B-02MQ FlexiBlok Series Air Line Filter	14	32	5 micron	Metal Manual	1.5 oz	5.94H x 1.68W
F14B-02Q FlexiBlok Series Air Line Filter	14	32	5 micron	Metal Manual	1.5 oz	5.94H x 1.68W

Product Questions & Answers (2)

Question by: Melvin P on Apr 6, 2026, 7:39 PM

Reckon this filter will hook right up to my existing 1/4 inch lines, or am I gonna need some kinda adapter?

Answer by: Customer Support on Apr 8, 2026, 6:08 AM

It's designed for direct connection to 1/4 inch NPT ports, so you shouldn't need any adapters if your lines are also 1/4 inch NPT.

Question by: Joyce J on Jan 24, 2026, 11:51 AM

got a 1/4 NPT airline already plumbed in. is this filter gonna screw right in, or am i missing something?

Answer by: Customer Support on Jan 26, 2026, 6:38 AM

With 1/4 inch NPT ports, it’s set up to thread right into a 1/4 NPT compressed air line. It can be mounted as a standalone filter, or tied into other FlexiBlok FRL pieces as a modular stack using the included screws and O-rings.
