main product photo

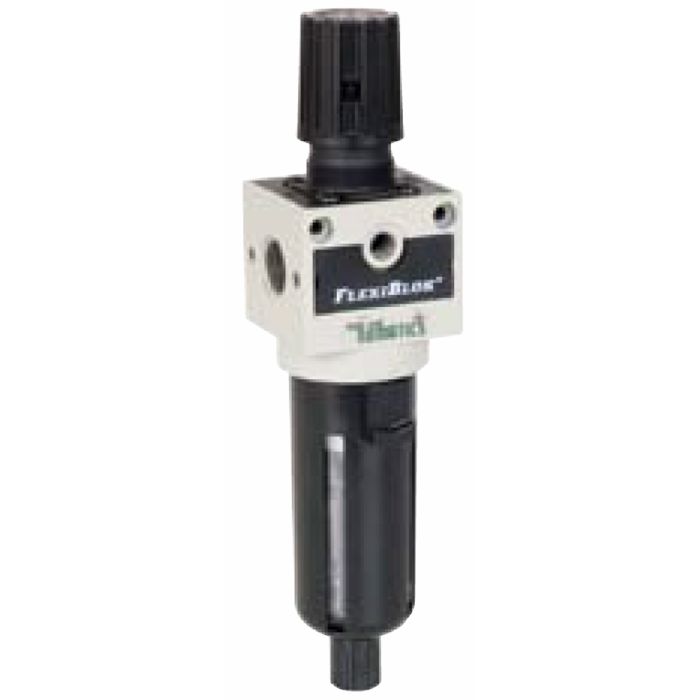

FlexiBlok Series Air Line Piggyback Filter/Regulator, 1/4 Inch Ports, 5 micron Element, 40 SCFM Flow Rating, Flex Drain

Ask A Question

Description & Features

This Numatics FlexiBlok Series air line filter/regulator combo offers both filtration and pressure regulation in a single, modular unit. It features 1/4 inch ports and a 5 micron element for effective particulate removal, with an airflow rating of 40 SCFM. The unit is equipped with a flex drain.

The FlexiBlok Series Air Line Piggyback Filter/Regulator is part of the series known for its modular design, allowing it to be installed as an individual unit or combined with other components. It includes a locking, non-rising adjustment knob and a polycarbonate bowl, with optional metal and CircleVision™ sight bowl alternatives. The unit's dimensions are 7.90H x 1.68W.

The filter regulator can withstand a maximum inlet pressure of 150 psi with the polycarbonate bowl or 200 psi with the metal bowl, and operates within a temperature range of 40-120 °F.

SKU: P14B-02BGM

Supplier Part Number (MPN): P14B-02BGM

Alternate Part Numbers: C1LC75, MI-06948361, MINO-00609X70040

Specifications

Bowl Material
Metal
Connection Type
NPTF
Dimensions
7.9 in H x 1.6 in W x 1.68 in D
Drain Type
Flexible
Gauge
With Gauge
grp Materials
Polycarbonate Bowl Standard, Optional Metal Bowl (Sight Glass on 22, 32 and 42 Series), Optional Circlevision™ Sight Bowl
grp Maximum Inlet Pressure
Polycarbonate Bowl: 150 psi, Metal Bowl: 200 psi
Housing Material
Zinc
Particle Type
Debris, Dust, Water
Pressure Adjustment Method
Knob
Series
FRL P14B Series
Sg 1 Shutoff Valve
Manual Shutoff Used to Relieve Downstream Pressure for Servicing or Maintenance. Security Hole Provided for Lockout Capabilities. May Also be Used as a Stand-Alone Unit
Sg 2 Filter
Particulate Filter: 5 um Filtration (Shown) Used as a Primary Filter to Remove Water, Dust, and Debris from Air Line (40 Micron Optional). Water Removal Efficiency is Greater than 90% at Rated Flow. Coalescing Filter: Used as a Secondary Filter to Remove
Sg 3 Regulator
Reduces Supply Pressure to A Required Working Pressure. Available in Relieving Or Non-Relieving Styles and in Four Different Pressure Ratings
Sg 4 Diverter Block
Provides Total Versatility, Mounts Directly In-Line to Allow Additional Components to Be Manifolded Without Excessive Pressure Drop
Sg 5 Lubricator
Designed to Meter Oil Aerosols Into the Air Stream Where Lubrication Is Required, Tamper-Resistant Adjustment Knob Eliminates Unauthorized Adjustments
Sg 6 Solenoid Soft Start Quick Exhaust Valve
When Solenoid Air Pilot Is Energized, Adjustable Flow Control Allows System to Be Pressurized Slowly, When Downstream Pressure Reaches Approximately 60% of Upstream Pressure, Slow Start Shifts to Full Flow Condition, When Solenoid Air Pilot Is De-Energize
Sg 7 Pressure Switch
Allows For Remote Monitoring of System Pressure, An Adjustable, Tamper-resistant Knob Resists Unauthorized Changes
Sg 8 Bowls
Three Types Available - Polycarbonate Bowl with Guard (Standard), Metal Bowl with Sight Glass, and Circlevision™ - A Metal Bowl Wrapped in Polycarbonate, Allowing A 360 deg View of Liquid Level in Bowl
Sg 9 Drains
Six Types Available - Manual Drain with Internal Barb Fitting (1/4 in ID) For Drain Tube (Standard), Automatic Float Drain, Flexible Drain, External Pulse Drain, Metal Manual Drain, and Manual Lever Drain, All Feature Unique Characteristics Suitable For M

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Gary P on Oct 13, 2025, 11:31 AM
What size ports does this regulator have? Gotta make sure it'll fit my existing setup.
Answer by: Customer Support on Oct 15, 2025, 6:55 AM
This regulator comes with 1/4 inch ports. That should help you match it up to your current air lines.
