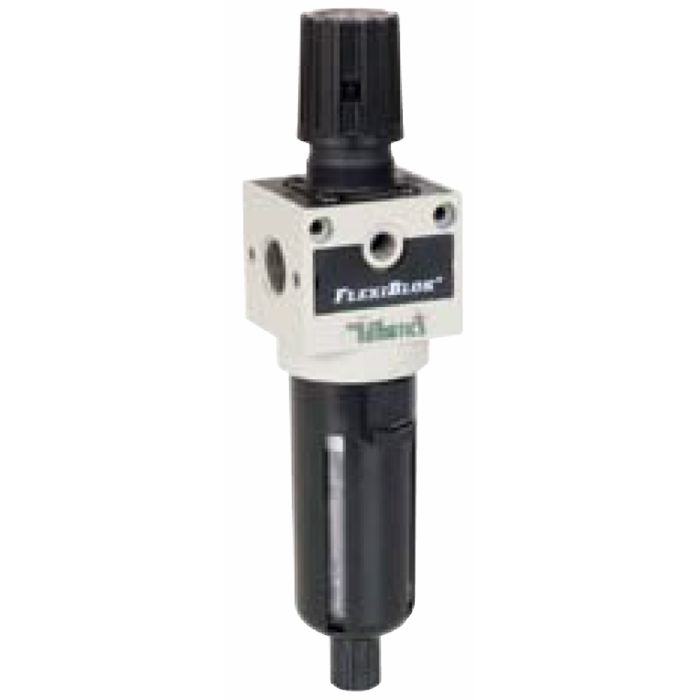

FlexiBlok Series Air Line Piggyback Filter/Regulators, Up To 325 SCFM at 250 PSI

Description & Features

Features	Four convenient sizes. 5 micron element standard (40 micron optional). Can be installed as individual or modular unit. Locking non-rising adjustment knob. Bowl seal held captive (22, 32, and 42 Series).
Materials	Polycarbonate bowl standard. Optional metal bowl (sight glass on 22, 32 and 42 Series). Optional CircleVision™ sight bowl.
Maximum Inlet Pressure	Polycarbonate Bowl: 150 psi, Metal Bowl: 200 psi.
Temperature Range	40-120 °F

Model Number	Series	Flow Rating (SCFM)	Element	Drain Type	Materials	Gauge	Dimensions
P14B-02 FlexiBlok Series Filter/Regulator	14	40	5 micron	Manual	Polycarbonate	No	7.90H x 1.68W
P14B-02BGM FlexiBlok Series Filter/Regulator	14	40	5 micron	Flex	Metal	Yes	7.90H x 1.68W
P42B-08AGM FlexiBlok Series Filter/Regulator	42	300	5 micron	Auto	Metal	Yes	17.4H x 4.00W
