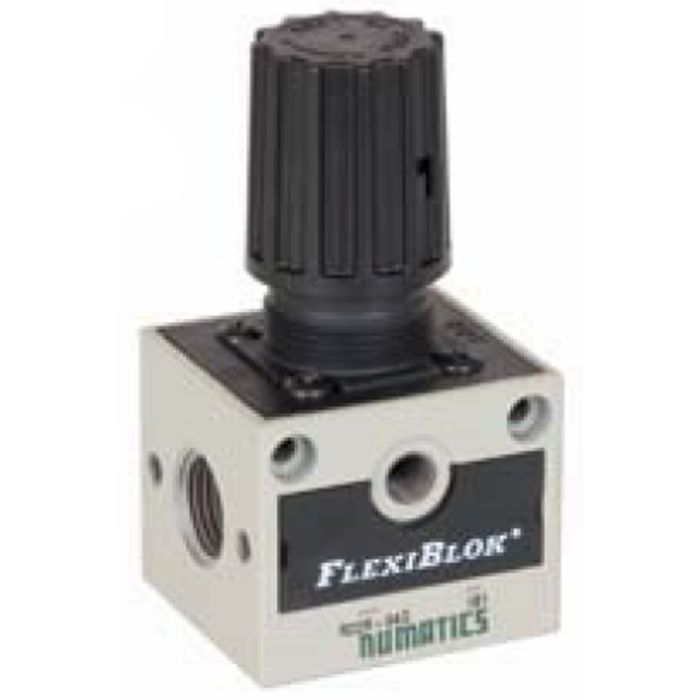

FlexiBlok Series Air Line Regulator, 1/2 Inch Ports, 0-125 psi PSI Spring Range, 70 SCFM Flow Rating

Part of the Numatics FlexiBlok Series, this 22 Series aluminum-body air line regulator features 1/2 inch NPT ports and a 0–125 psi spring range, with a rated flow of 70 SCFM. The relieving-style design reduces supply pressure to a set working pressure and releases excess downstream pressure when the adjustment knob is backed off. A locking, non-rising adjustment knob helps prevent unintended pressure changes during service. Maximum inlet pressure for the 22 Series is 200 psi, and the unit is rated for use between 40 and 120 °F.

The FlexiBlok Series Air Line Regulator, 1/2 Inch Ports, 0-125 psi PSI Spring Range, 70 SCFM Flow Rating ships with an integrated pressure gauge and can be installed as a standalone unit or configured as part of a modular FRL assembly using compatible FlexiBlok components including filters, lubricators, shutoff valves, and solenoid soft-start valves.

SKU: R22R-04G

Supplier Part Number (MPN): R22R-04G

Alternate Part Numbers: C1LC96, MI-02059092, MINO-00609I46118
