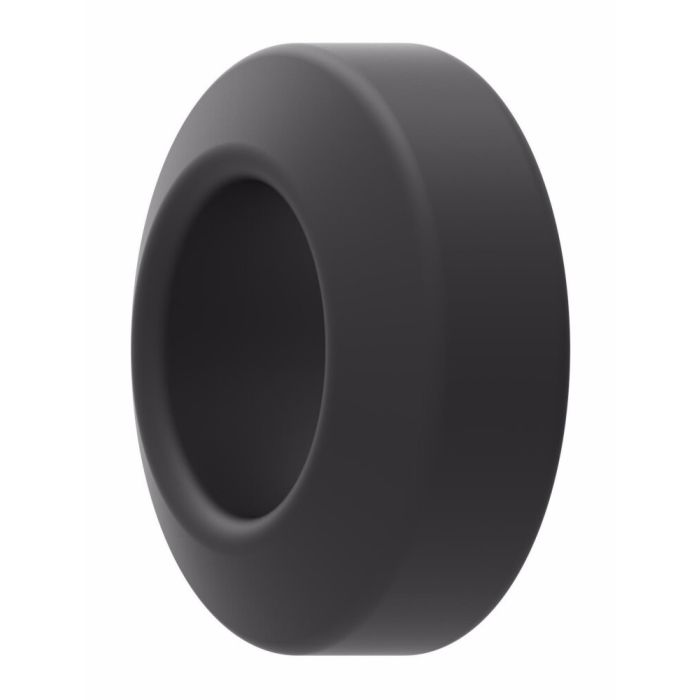

main product photo

Flexmaster Series Danfoss / Eaton Flexmaster Tube and Pipe Joints Gasket

Ask A Question

Description & Features

Designed for sealing tube and pipe connections in industrial fluid systems, the Flexmaster Series Danfoss / Eaton Flexmaster Tube and Pipe Joints Gasket accommodates angular misalignment up to 4° per end on straight-through configurations, with tees, elbows, and crosses rated up to 2° per end. The bulged, straight-through design allows for reliable alignment flexibility without compromising the seal integrity.

Rated for up to 300 psi service depending on size and application, this gasket is available in both standard and self-restrained styles. The self-restrained version incorporates a stainless steel gripping ring inside the gasket to prevent axial movement along the pipe or tube. End size is 2.5 on both connections, with a minimum working temperature of -30°. External restraints such as hangers, guides, and anchors remain required to manage system movement, the joint is engineered specifically for sealing, not structural retention.

SKU: NK1000063C250

Supplier Part Number (MPN): NK1000063C250

Alternate Part Numbers: C1HH91

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Size 1
2.50
End Size 2
2.50
End Type 2
Line/Hose/Tube
Minimum Working Temperature
-30
Supplier Part Number
NK1000063C250
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1HH91
Product Weight
0.27 lbs

Related Documents

Similar Products

Model Number Product Description Price Action
Flexmaster Series Danfoss / Eaton Flexmaster Tube and Pipe Joints Coupling

NH100085-200YF Flexmaster Series Part

Danfoss / Eaton Flexmaster Tube and Pipe Joints Coupling

Flexmaster Series Danfoss / Eaton Flexmaster Tube and Pipe Joints Coupling

NH100085-250YF Flexmaster Series Part

Danfoss / Eaton Flexmaster Tube and Pipe Joints Coupling

Flexmaster Series Danfoss / Eaton Flexmaster Tube and Pipe Joints Coupling

NH100085-400YF Flexmaster Series Part

Danfoss / Eaton Flexmaster Tube and Pipe Joints Coupling

Flexmaster Series Danfoss / Eaton Flexmaster Tube and Pipe Joints Retainer

NK1000023-200 Flexmaster Series Part

Danfoss / Eaton Flexmaster Tube and Pipe Joints Retainer

Flexmaster Series Danfoss / Eaton Flexmaster Tube and Pipe Joints Retainer

NK1000023-400 Flexmaster Series Part

Danfoss / Eaton Flexmaster Tube and Pipe Joints Retainer

Flexmaster Series Danfoss / Eaton Flexmaster Tube and Pipe Joints Gasket Assembly

NK1000061C350 Flexmaster Series Part

Danfoss / Eaton Flexmaster Tube and Pipe Joints Gasket Assembly

Flexmaster Series Danfoss / Eaton Flexmaster Tube and Pipe Joints Gasket

NK1000063C200 Flexmaster Series Part

Danfoss / Eaton Flexmaster Tube and Pipe Joints Gasket

Flexmaster Series Danfoss / Eaton Flexmaster Tube and Pipe Joints Gasket

NK1000063C250 Flexmaster Series Part

Danfoss / Eaton Flexmaster Tube and Pipe Joints Gasket

Flexmaster Series Danfoss / Eaton Flexmaster Tube and Pipe Joints Gasket

NK1000063C300 Flexmaster Series Part

Danfoss / Eaton Flexmaster Tube and Pipe Joints Gasket

Flexmaster Series Danfoss / Eaton Flexmaster Tube and Pipe Joints Gasket

NK1000063C400 Flexmaster Series Part

Danfoss / Eaton Flexmaster Tube and Pipe Joints Gasket

Product Questions & Answers (2)

Question by: Rusty E on Sep 18, 2025, 6:05 AM
got a 2.5 inch pipe connection that keeps shifting a little out of line during operation, will this gasket still seal okay with some angular offset?
Answer by: Customer Support on Sep 19, 2025, 1:23 PM
Up to 4 degrees of angular misalignment per end is within what the straight-through Flexmaster configuration handles. So some offset during operation is not going to break the seal as long as you stay within that tolerance. If your connection involves a tee, elbow, or cross fitting, the limit drops to 2 degrees per end, so keep that in mind depending on your setup.
Question by: Gene B on Apr 23, 2025, 1:14 PM
So, this gasket, it's gonna let my pipes move around a little, right? How much we talkin'?
Answer by: Customer Support on Apr 25, 2025, 6:39 AM
The Flexmaster joints can handle up to 4 degrees of angular misalignment on each end for straight runs. For tees, elbows, and crosses, it's up to 2 degrees per end.
