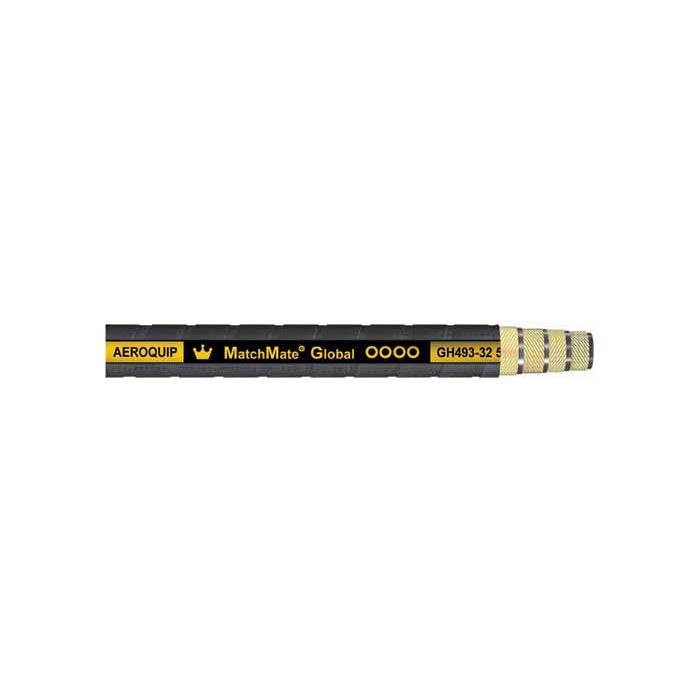

Four Heavy Spiral Wire SAE 100R12 Hose

Description & Features

Application	Hydraulic system service with petroleum and water-base fluids, for general industrial service. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on
Construction	Synthetic rubber tube, 4 spiral reinforcement and black synthetic rubber cover.
Note	-6 size approved for 10,000 psi max. operating pressure for static jack hose applications.
Temperature Range	-40°F. to +260°F.

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Reel Qty (ft)
GH493-20 Four Spiral SAE 100R12 Hose	1.25	1.83	4500	16.54	Rolls Only
GH493-12 Four Spiral SAE 100R12 Hose	0.75	1.2	5500	9.45	Rolls Only
GH493-16 Four Spiral SAE 100R12 Hose	1	1.48	5100	11.81	Rolls Only
GH493-6 Four Spiral SAE 100R12 Hose	0.38	0.79	6500	4.92	Rolls Only
GH493-10 Four Spiral SAE 100R12 Hose	0.63	1.11	6000	7.87	Rolls Only
GH493-24 Four Spiral SAE 100R12 Hose	1.5	2.12	4000	19.68	Rolls Only
GH493-32 Four Spiral SAE 100R12 Hose	2	2.64	4000	25.2	Rolls Only
GH493-8 Four Spiral SAE 100R12 Hose	0.5	0.92	6000	7.09	Rolls Only
