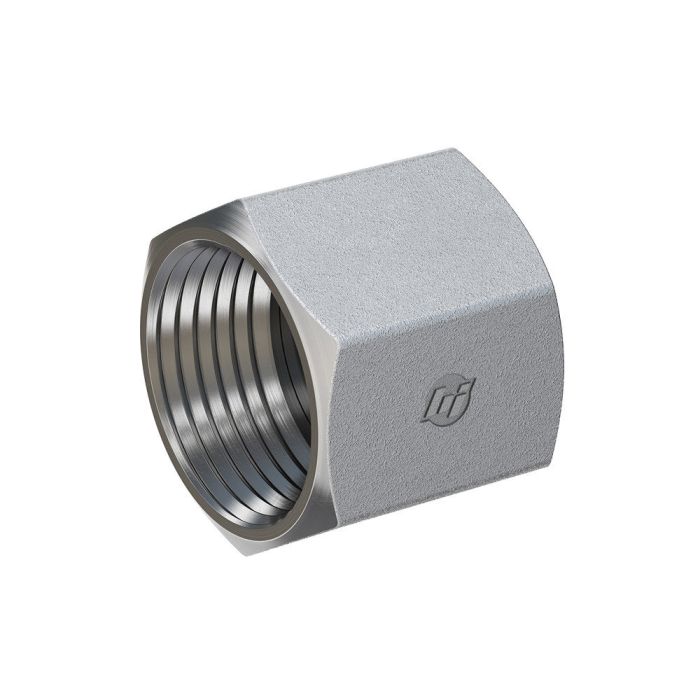

06 FS CAP ASSEMBLY INSERT & NUT

Description & Features

The 06 FS CAP ASSEMBLY INSERT & NUT is designed for hydraulic applications requiring secure and reliable connections.

This cap assembly features a 3/8" tube OD, a Brennan H OD of 0.620", and a Brennan Hex size of 0.812". The Brennan K Length measures 0.37", with a Brennan L In dimension of 0.670". Part of the Brennan FS0304-C series, this assembly ensures compatibility and performance.

SKU: FS0304-C-06

Supplier Part Number (MPN): FS0304-C-06

Alternate Part Numbers: AFF9863-06S, FF0304-C-06

Specifications

Brand BRENNAN	Connection Size 1 3/8 in	Connection Type Female ORFS	Connection Type 1 SAE Female ORFS	Dimension Standards SAE J1453	Dimensions 0.67 in L	Finish Trivalent Zinc-Plated	Fitting Type Insert	For Use With FS0318 Series Nuts	Hex Size 0.81 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Series FS0304-C Series	Thread Size 11/16-16	Tube OD 3/8 in	Tube Outside Diameter 0.38 in

Product Questions & Answers (1)

Question by: Daryl B on Dec 8, 2025, 10:46 AM

What size tubing does this cap assembly fit?

Answer by: Customer Support on Dec 9, 2025, 11:57 AM

This cap assembly is made to fit 3/8" OD tubing.
