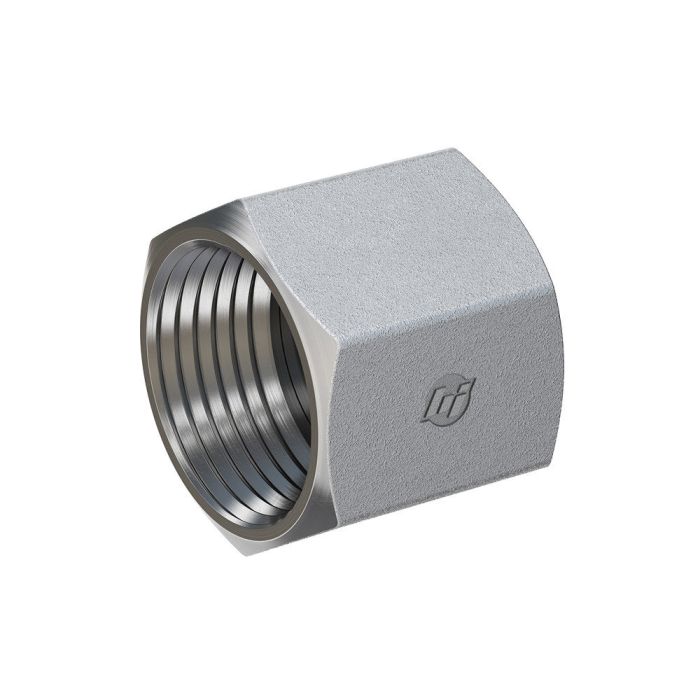

main product photo

16 FS CAP ASSEMBLY INSERT & NUT

Ask A Question

Description & Features

The 16 FS CAP ASSEMBLY INSERT & NUT features a 1" tube OD and a 1-7/16-12 Brennan B1 dimension. It measures 1.347 inches in Brennan H OD, 1.625 inches in Brennan Hex, 0.590 inches in Brennan K length, and 1.090 inches in Brennan L In.

This cap assembly is part of the Brennan Industries FS0304-C series. This is a male product.

SKU: FS0304-C-16

Supplier Part Number (MPN): FS0304-C-16

Alternate Part Numbers: 1046-2271, AFF9863-16S, FF0304-C-16

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Type
Female ORFS
Connection Type 1
SAE Female ORFS
Dimension Standards
SAE J1453
Dimensions
1.08 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Insert
For Use With
FS0318 Series Nuts
Hex Size
1-5/8
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
FS0304-C Series
Thread Size
1-7/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Kent R on Jan 24, 2026, 4:18 PM
So this here's a cap assembly, right? What all comes with it? Just wanna make sure I got everything I need.
Answer by: Customer Support on Jan 26, 2026, 6:07 AM
The 16 FS CAP ASSEMBLY INSERT & NUT includes both the FS tube nut and the insert, so you should have everything you need to cap off that 1" tube OD.
