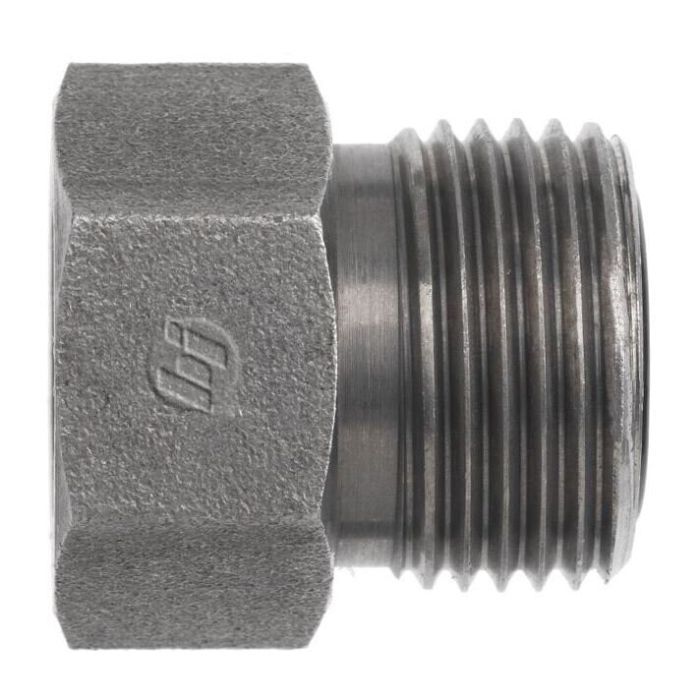

08BORE-08MFS STRAIGHT

Description & Features

Designed for straight-through hydraulic connections, the 08Bore-08MFS Straight is a Brennan Industries fitting from the FS0403 series. It carries a 13/16-16 thread and an 0.878 in. hex, with a bore of 0.506 in. and an overall length of 0.970 in. The drill dimension of 0.378 in. and a port depth of 0.330 in. reflect the precision tolerances typical of Brennan's hydraulic fitting line.

This fitting suits inline hydraulic circuit connections where a compact straight configuration is required. The FS0403 series is well-suited for use with standard SAE ports in mobile and industrial hydraulic systems.

SKU: FS0403-08-08

Supplier Part Number (MPN): FS0403-08-08

Alternate Part Numbers: AFF1851T0808S, FF0403-08-08

Specifications

Brand BRENNAN	a Drill Dimensions 0.378 in	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Bore, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 SAE Bore	Dimension Standards SAE J1453	Dimensions 0.97 in L	e Bore Dimensions 0.506 in	Fitting Type Adapter	Hex Size 7/8 in	Material Steel	Material Construction AISI 1018/1020 Steel	Operating Temperature -40 to 250 deg F	Series FS0403 Series	Thread Size 13/16-16

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
FS0403-04-04	1/4 in	1/4 in	9/16-18
FS0403-04-06	1/4 in	3/8 in	11/16-16
FS0403-06-06	3/8 in	3/8 in	11/16-16
FS0403-06-08	3/8 in	1/2 in	13/16-16
FS0403-08-12	1/2 in	3/4 in	1-3/16-12
FS0403-10-10	5/8 in	5/8 in	1-14S
FS0403-12-16	3/4 in	1 in	1-7/16-12
FS0403-20-16	1-1/4 in	1 in	1-7/16-12

Product Questions & Answers (3)

Question by: Cody S on Sep 5, 2025, 9:20 PM

trying to swap out a straight fitting, what thread size is this one and how big is the hex?

Answer by: Customer Support on Sep 7, 2025, 7:51 AM

For fit-up, it uses a 13/16-16 thread and takes a 0.875 in. hex.

Question by: Floyd R on May 25, 2025, 8:27 AM

what thread size does this fitting run on, the 13/16-16?

Answer by: Customer Support on May 27, 2025, 6:35 AM

13/16-16 is correct. It's a standard thread size that works with SAE ports, so if you're running a typical mobile or industrial hydraulic setup, it should line right up with what you've already got in place.

Question by: Warren R on Jun 1, 2025, 8:26 AM

What size wrench do I need for this fitting?

Answer by: Customer Support on Jun 2, 2025, 12:23 PM

An 0.875 inch hex wrench will fit this straight fitting.
