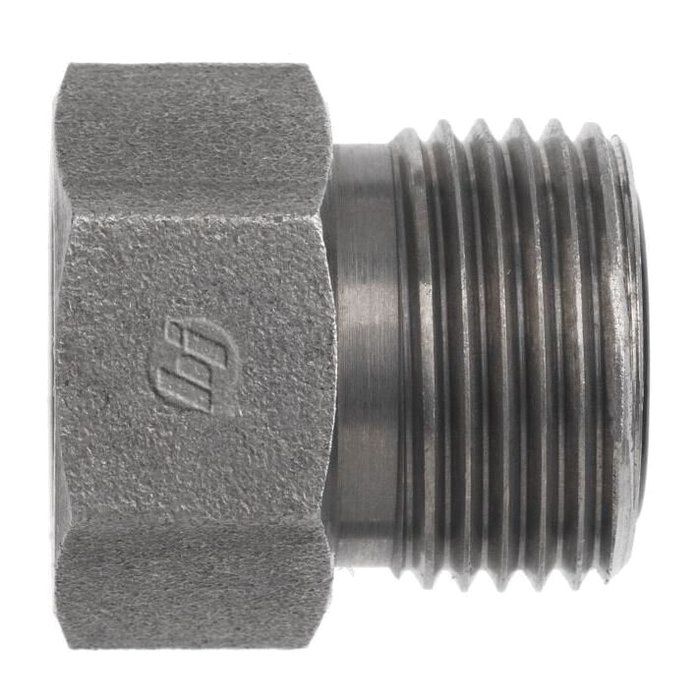

12BORE-16MFS STRAIGHT

Ask A Question

Description & Features

The 12BORE-16MFS STRAIGHT is a straight fitting with a 1-7/16-12 Brennan A thread and a 0.609" Brennan A drill size.

This fitting features a 0.757" Brennan E bore, a 0.490" Brennan G depth, and a 1.460" Brennan L1 length. The hex size is 1.500". It belongs to the FS0403 series from Brennan Industries.

SKU: FS0403-12-16

Supplier Part Number (MPN): FS0403-12-16

Specifications

Brand
BRENNAN
a Drill Dimensions
0.609 in
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Bore, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
SAE Bore
Dimension Standards
SAE J1453
Dimensions
1.46 in L
e Bore Dimensions
0.757 in
Fitting Type
Adapter
Hex Size
1-1/2 in
Material
Steel
Material Construction
AISI 1018/1020 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS0403 Series
Thread Size
1-7/16-12

Product Questions & Answers (1)

Question by: Chad B on Oct 25, 2025, 3:32 PM
What size is the hex on this fitting? Gotta make sure I have the right wrench.
Answer by: Customer Support on Oct 27, 2025, 8:55 AM
It takes a 1.500" hex wrench.
