BRENNAN CODE 61 X ORS

Ask A Question

Description & Features

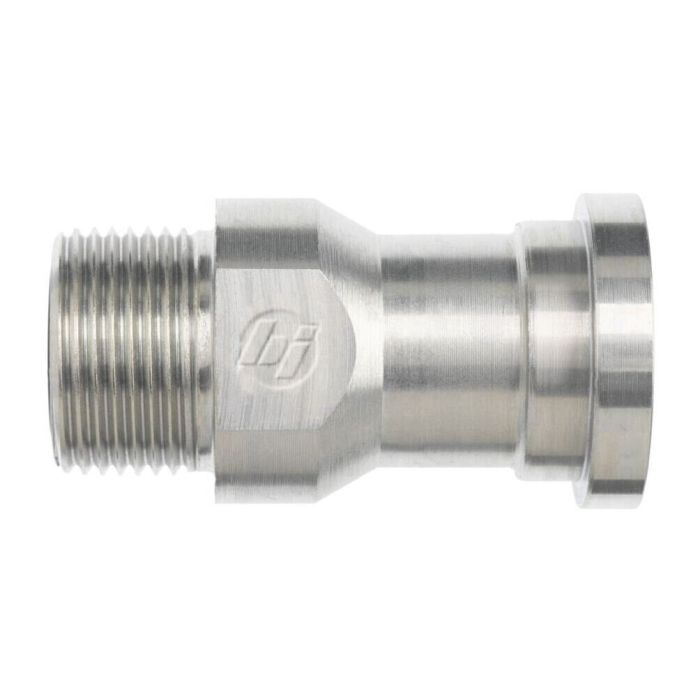

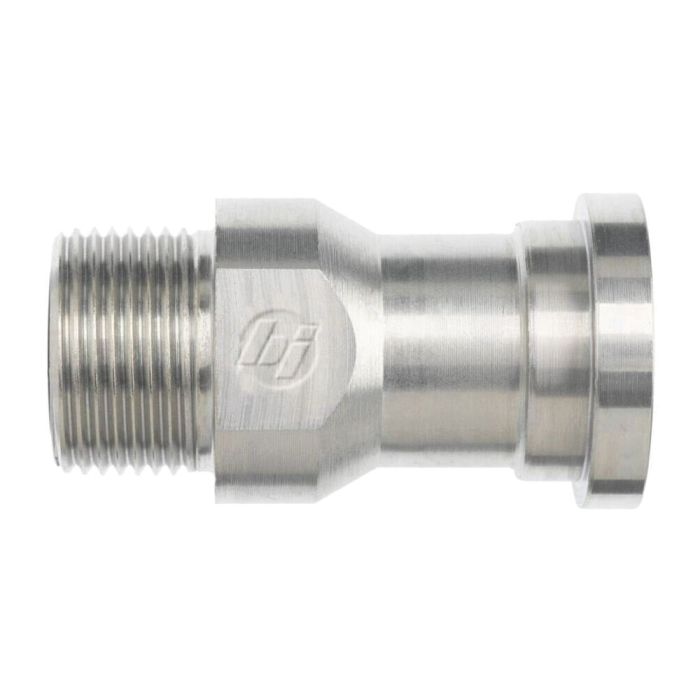

A straight flange adapter in the Code 61 x ORS configuration, the Brennan Industries FS1700-08-08 connects a 1/2 in. SAE Code 61 four-bolt flange port to a male O-ring face seal (ORS) thread. The male ORS end features a 13/16-16 UN thread, with an across-flats measurement of 1.125 in. and an overall length of 2.450 in. The 1/2 in. flange size and matching 1/2 in. tube O.D. make this a straightforward, direct-replacement adapter for mid-range hydraulic line connections.

Part of Brennan's FS1700 series, this fitting is well suited for hydraulic systems where a flange port must transition to an ORS threaded connection in a compact, inline orientation. The straight configuration keeps the connection path direct, minimizing the need for additional bends or fittings in the line.

SKU: FS1700-08-08

Supplier Part Number (MPN): FS1700-08-08

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J1453, SAE J518
Dimensions
2.45 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1700 Series
Thread Size
1-3/16-12
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (1)

Question by: Brent E on Dec 27, 2025, 12:15 PM
So this is just a straight adapter, right? No weird angles or anything?
Answer by: Customer Support on Dec 29, 2025, 6:57 AM
Correct, this Brennan FS1700-08-08 is a straight flange adapter, which provides a direct, inline connection between a Code 61 flange port and an ORS thread.
