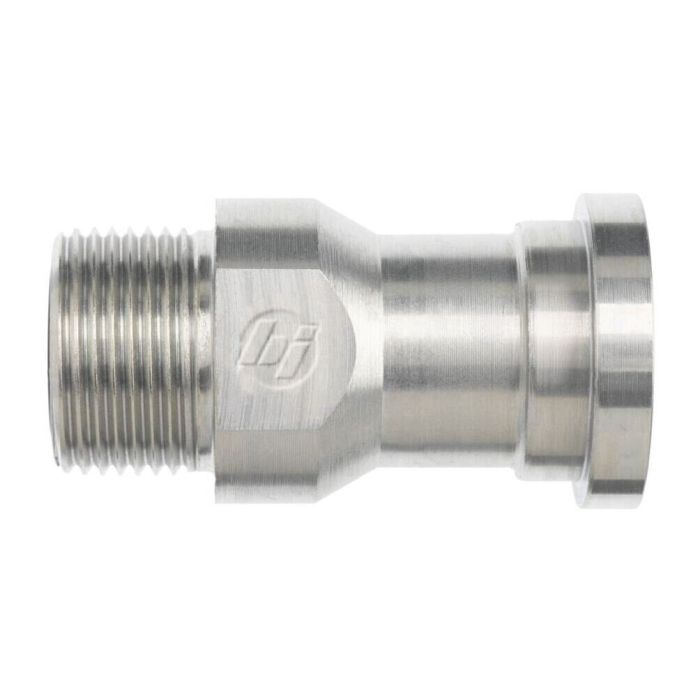

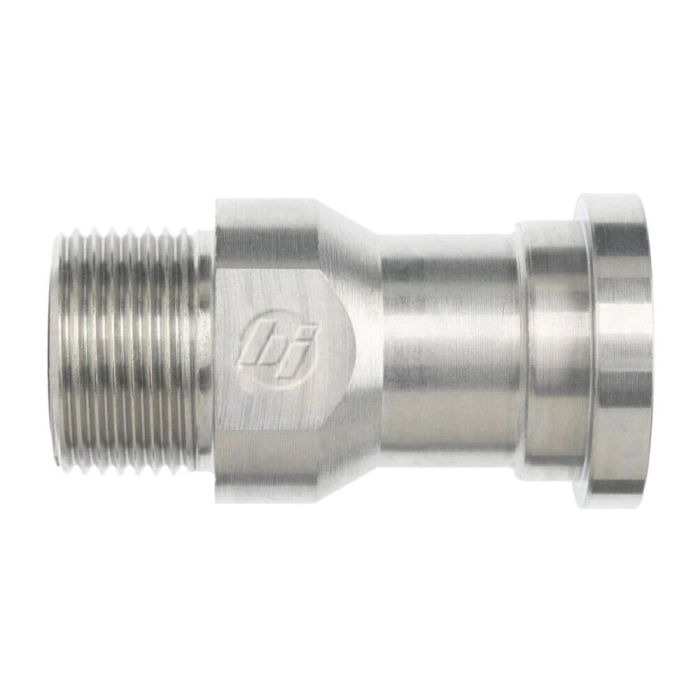

main product photo

BRENNAN CODE 61 X MORS

Ask A Question

Description & Features

This Brennan CODE 61 X MORS fitting is designed for hydraulic applications requiring a secure and reliable connection. Featuring a 1-7/16-12 thread and a 3/4 flange, this straight fitting ensures optimal flow and performance.

Constructed to meet industry standards, the FS1700 series fitting has an AF In dimension of 1.625 inches and an L In dimension of 2.750 inches, with a tube OD of 1 inch. The BRENNAN CODE 61 X MORS fitting is a dependable choice for various hydraulic setups.

SKU: FS1700-16-12

Supplier Part Number (MPN): FS1700-16-12

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J1453, SAE J518
Dimensions
2-3/4 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/2 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1700 Series
Thread Size
1-7/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Terry W on Sep 15, 2025, 8:03 AM
I need a straight fitting for a hydraulic setup and this looks about right. What exactly does the Code 61 refer to?
Answer by: Customer Support on Sep 16, 2025, 11:31 AM
Code 61 refers to the industry standard for the flange, ensuring it's a secure and reliable connection for hydraulic applications.
