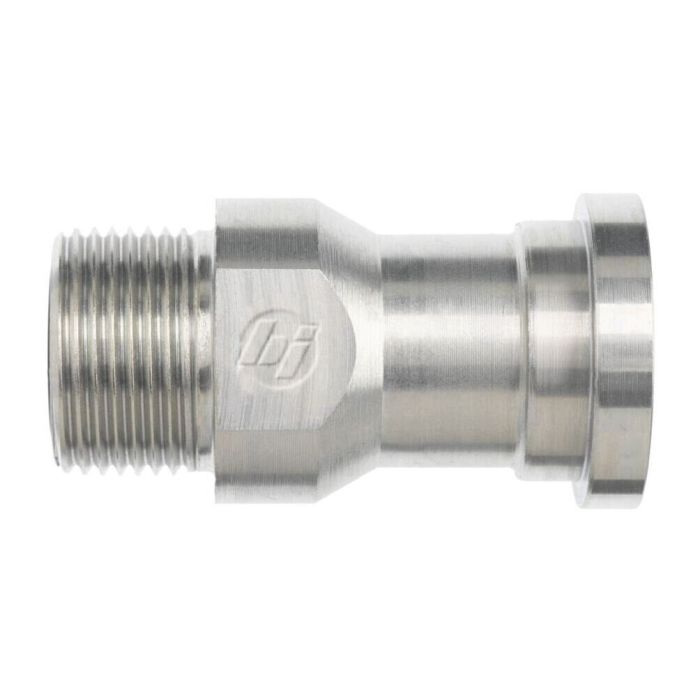

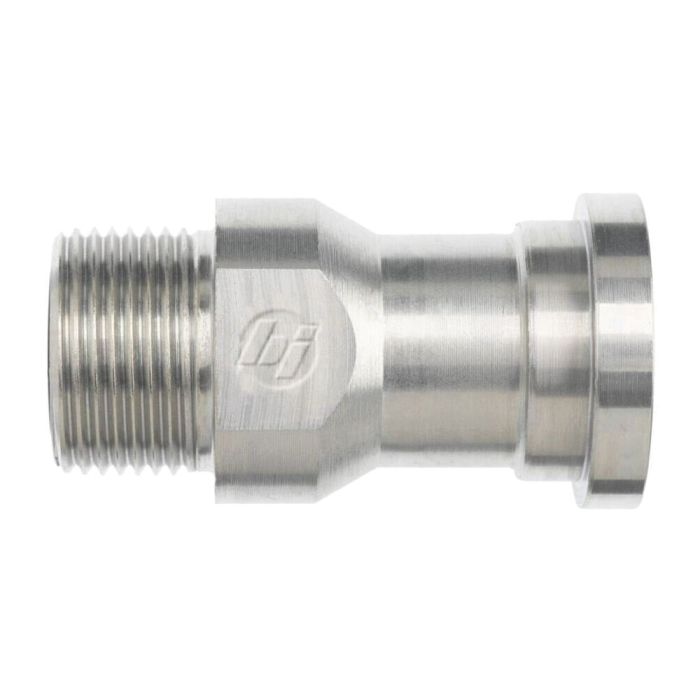

16MFS-20FLANGE STRAIGHT CODE 61

Ask A Question

Description & Features

The 16MFS-20Flange Straight Code 61 is a reliable solution for connecting hydraulic components securely and efficiently. Designed by Brennan Industries, this part features a robust 1-7/16-12 thread and a 1 1/4-inch flange, ensuring compatibility with a variety of hydraulic systems. Its compact length of 2.800 inches and tube outer diameter of 1 inch offer a balanced combination of strength and ease of installation.

This component is part of the FS1700 series, known for its durability and precision in demanding industrial environments. Crafted to meet high standards, the 16MFS-20Flange Straight Code 61 is ideal for applications requiring dependable performance under pressure. Its thoughtful design and quality construction make it a preferred choice for professionals seeking reliable hydraulic connections.

SKU: FS1700-16-20

Supplier Part Number (MPN): FS1700-16-20

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J1453, SAE J518
Dimensions
2.8 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/2 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1700 Series
Thread Size
1-7/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Lyle C on May 8, 2025, 8:57 AM
What size is that flange? Looks like I need 1 1/4 inch.
Answer by: Customer Support on May 9, 2025, 9:44 AM
The flange on this straight code 61 fitting is indeed 1 1/4 inches, so it should fit your application perfectly if that's what you're after.
