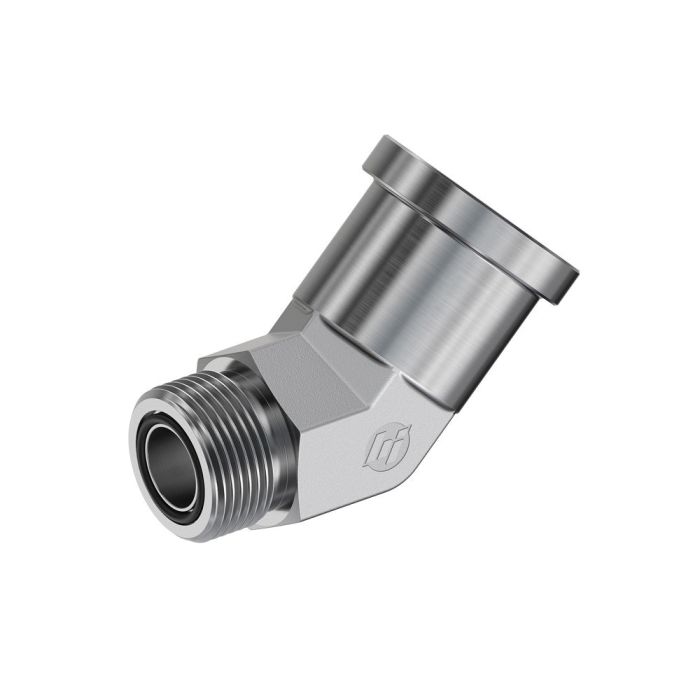

BRENNAN 16MFS-16FLANGE 45 ELBOW

Ask A Question

Description & Features

The Brennan 16MFS-16Flange 45 Elbow is a high-quality hydraulic fitting designed for robust industrial applications. Featuring a 45-degree angle, this elbow is part of the FS1703-FG series and is engineered to meet Code 61 standards for reliable performance. Constructed with precision, it includes a 1-7/16-12 thread size and a 1-inch flange, ensuring compatibility with a variety of hydraulic systems.

This elbow fitting is crafted by Brennan Industries, known for their commitment to durability and precision in hydraulic components. With dimensions of 1.311 inches for the AF (across flats), L1 measuring 1.470 inches, and L2 at 1.850 inches, it is designed for efficient fluid transfer and optimal alignment in complex systems. The Brennan Tube OD is 1 inch, making it suitable for heavy-duty applications where integrity and performance are critical.

SKU: FS1703-16-16-FG

Supplier Part Number (MPN): FS1703-16-16-FG

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J1453, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-3/8 in
l1 Dimensions
1.47 in
l2 Dimensions
1.85 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1703-FG Series
Thread Size
1-7/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Howard G on Sep 29, 2025, 3:46 PM
Reckon this'll fit a standard 1-inch flange setup then?
Answer by: Customer Support on Sep 30, 2025, 9:51 PM
Context-first, the 1-inch flange size is designed to mate with standard Code 61 flange connections. Just make sure your system matches that standard.
