BRENNAN ADAPTER CODE61 X MORS

Ask A Question

Description & Features

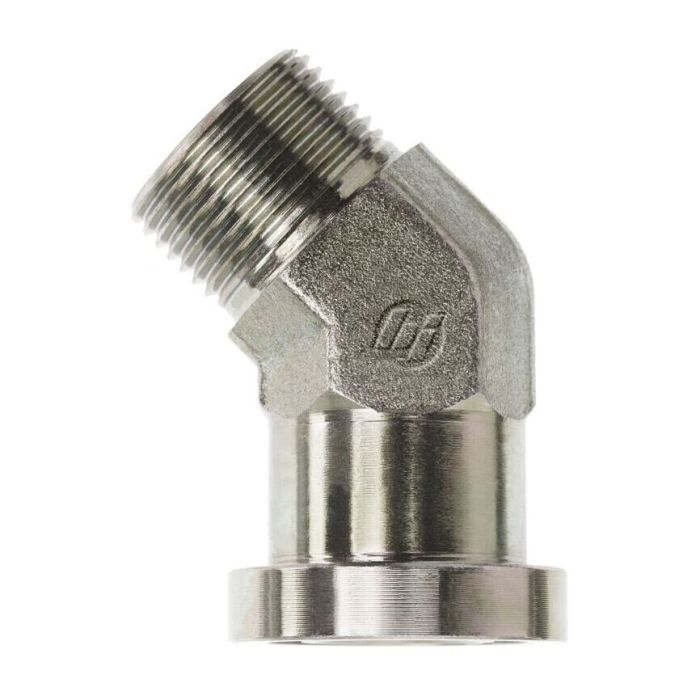

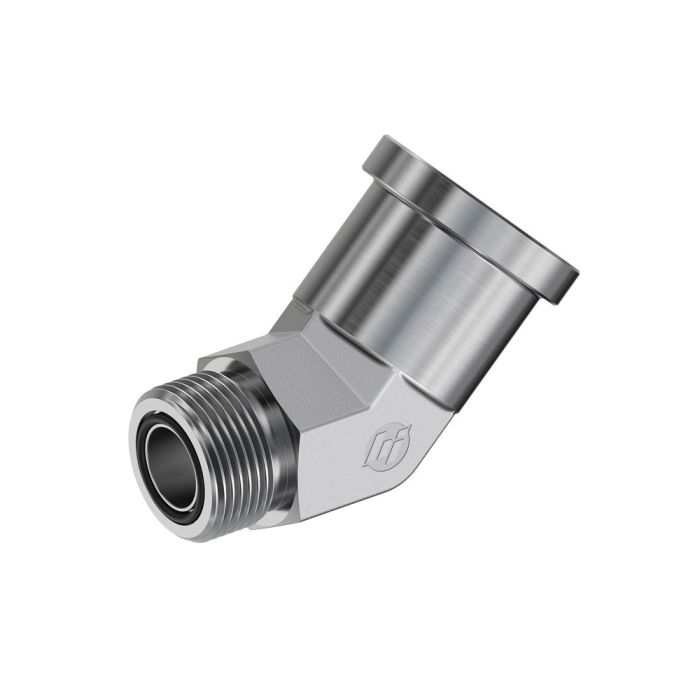

This Brennan Adapter features a Code 61 flange connection on one end and a Male Adjustable O-Ring (MORS) end on the other. It is constructed from durable forged steel for reliable performance in demanding hydraulic applications.

The Brennan Adapter CODE61 X MORS features a 1-1/4 inch flange and a 1-11/16-12 thread. With a Brennan 2 Flange size of 1-1/4 inches. This 45-degree elbow adapter is part of the FS1703-FG series.

SKU: FS1703-20-20-FG

Supplier Part Number (MPN): FS1703-20-20-FG

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J1453, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1.688 in
l1 Dimensions
1.59 in
l2 Dimensions
2.04 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1703-FG Series
Thread Size
1-11/16-12
Tube Outside Diameter
1-1/4 in

Product Questions & Answers (1)

Question by: Norm T on Jan 15, 2026, 6:09 AM
What size is the flange on this adapter?
Answer by: Customer Support on Jan 16, 2026, 8:55 AM
It features a 1-1/4 inch flange, according to the specs.
