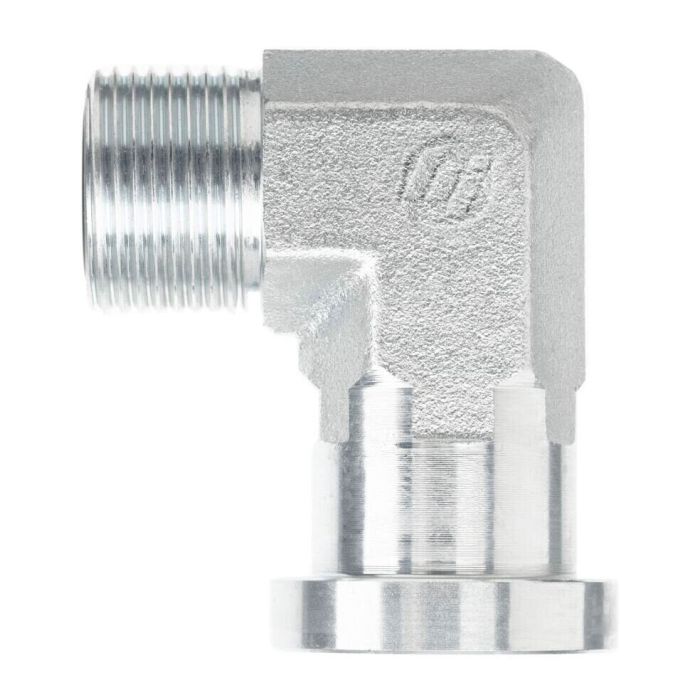

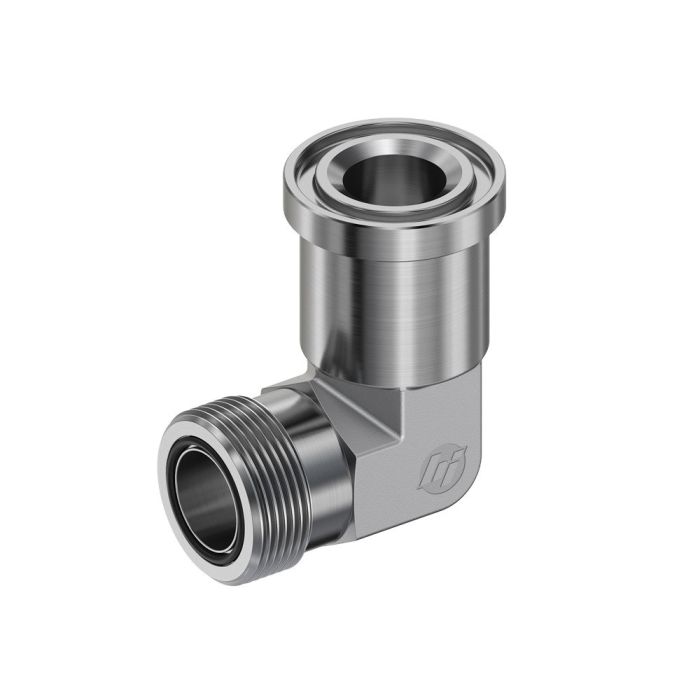

12MFS-12FLANGE 90 ELBOW CODE 61 FORG

Ask A Question

Description & Features

This forged 90-degree elbow features a 1-3/16-12 Brennan 1 thread and a 3/4 Brennan 2 flange. The 12MFS-12FLANGE 90 ELBOW CODE 61 FORG is part of the FS1704-FG series and has an AF In dimension of 1.062 and a tube OD of 3/4.

Additional dimensions include an L1 In measurement of 1.660 and an L2 In measurement of 2.130. Designed with a male connection, this elbow provides a reliable and secure link in demanding hydraulic applications.

SKU: FS1704-12-12-FG

Supplier Part Number (MPN): FS1704-12-12-FG

Alternate Part Numbers: FGFF6890-12-12

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J1453, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.188 in
l1 Dimensions
1.66 in
l2 Dimensions
2.13 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1704-FG Series
Thread Size
1-3/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (1)

Question by: Wade C on Oct 31, 2025, 8:48 PM
What size is that flange on this elbow fitting?
Answer by: Customer Support on Nov 2, 2025, 6:51 AM
It comes with a 3/4 Brennan 2 flange.
