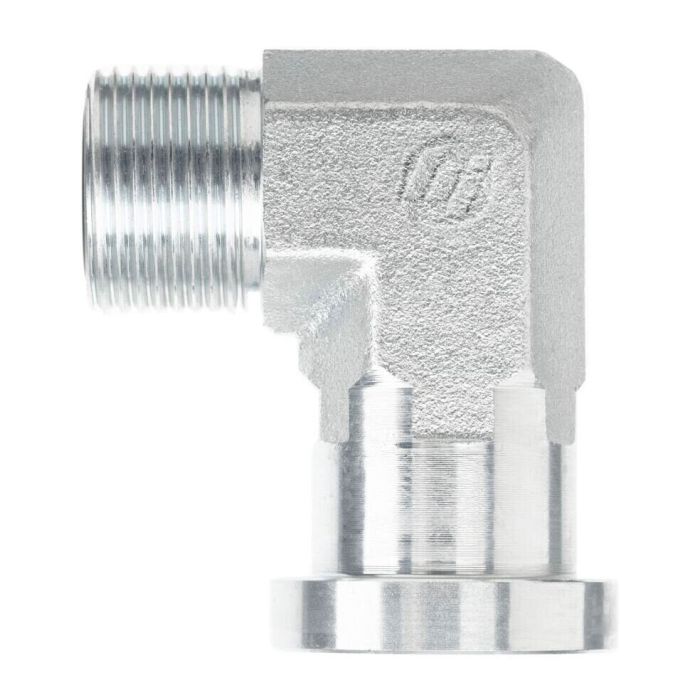

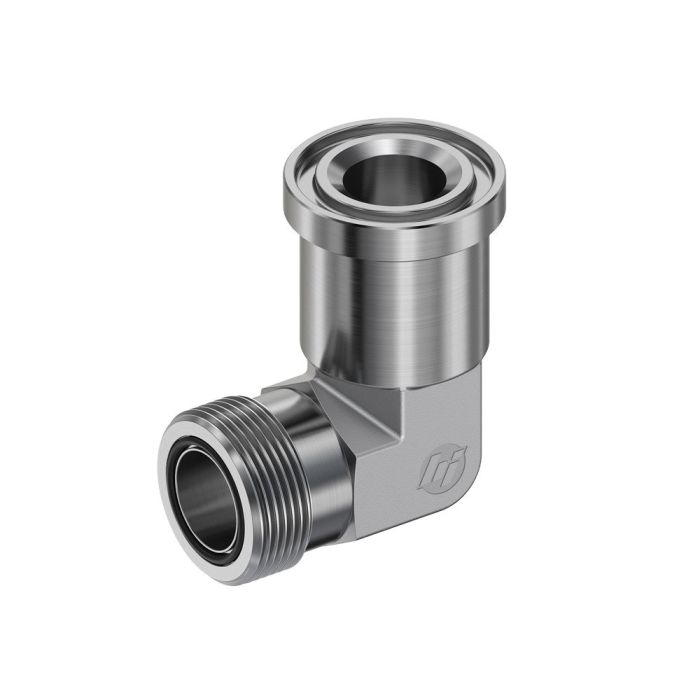

main product photo

16MFS-12Flange 90° Elbow Code 61 Forg

Ask A Question

Description & Features

Designed for high-pressure hydraulic systems requiring a direction change, the 16MFS-12Flange 90° Elbow Code 61 Forg from Brennan Industries connects a 1-7/16-12 male flareless fitting to a 3/4 inch Code 61 flange interface at a 90-degree angle. The forged construction provides the structural integrity expected in demanding hydraulic circuit applications.

Sized for a 1-inch tube OD, this fitting carries an across-flat dimension of 1.062 inches. The L1 dimension measures 1.660 inches and the L2 dimension measures 2.130 inches, making it suitable for installations where compact routing and precise fitment are required. Part of the Brennan FS1704-FG series, it is engineered to meet Code 61 flange standards commonly used in mid- to high-pressure hydraulic circuits.

SKU: FS1704-16-12-FG

Supplier Part Number (MPN): FS1704-16-12-FG

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J1453, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.438 in
l1 Dimensions
1.66 in
l2 Dimensions
2.13 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1704-FG Series
Thread Size
1-7/16-12
Tube Outside Diameter
1 in
