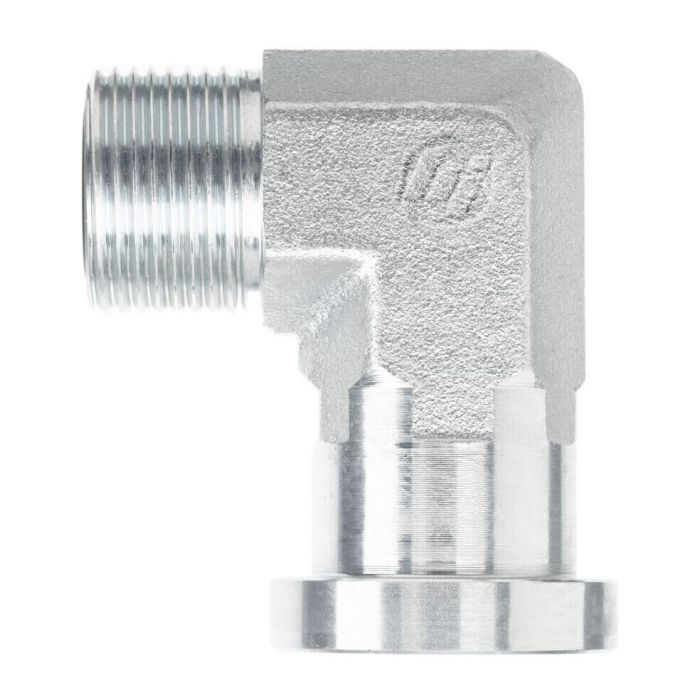

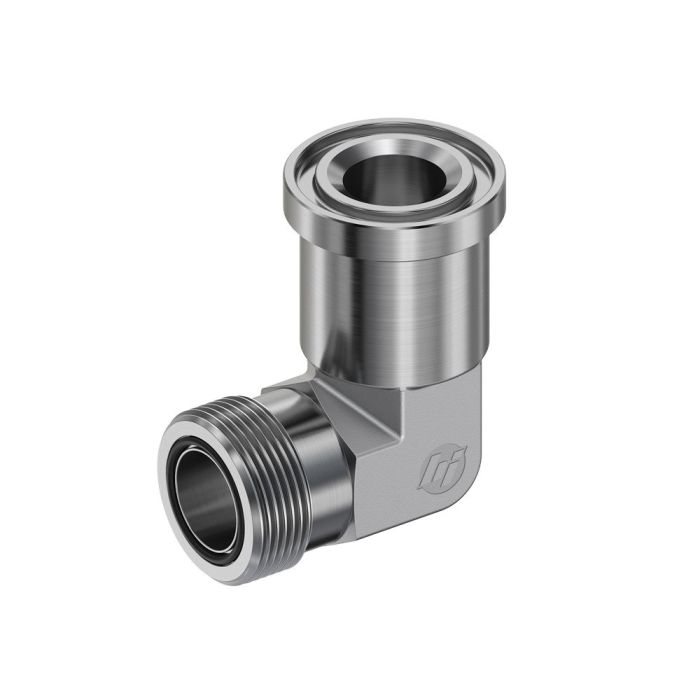

20MFS-20FLANGE 90 ELBOW CODE 61 FORG

Ask A Question

Description & Features

Designed for high-pressure hydraulic systems requiring a compact directional change, this 90-degree forged elbow connects a 1-11/16-12 male facesealing thread to a 1-1/4 inch Code 61 flange port. Manufactured by Brennan Industries, the fitting is part of the FS1704-FG series and is suited for 1-1/4 inch tube OD applications.

The 20MFS-20Flange 90 Elbow Code 61 Forg carries an across-flat dimension of 1.625 inches, with an L1 length of 2.060 inches and an L2 length of 2.620 inches. The forged construction provides the structural integrity expected in demanding hydraulic line assemblies where reliable flange connections are required.

SKU: FS1704-20-20-FG

Supplier Part Number (MPN): FS1704-20-20-FG

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J1453, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-5/8
l1 Dimensions
2.06 in
l2 Dimensions
2.62 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1704-FG Series
Thread Size
1-11/16-12
Tube Outside Diameter
1-1/4 in
