FLANGE

Description & Features

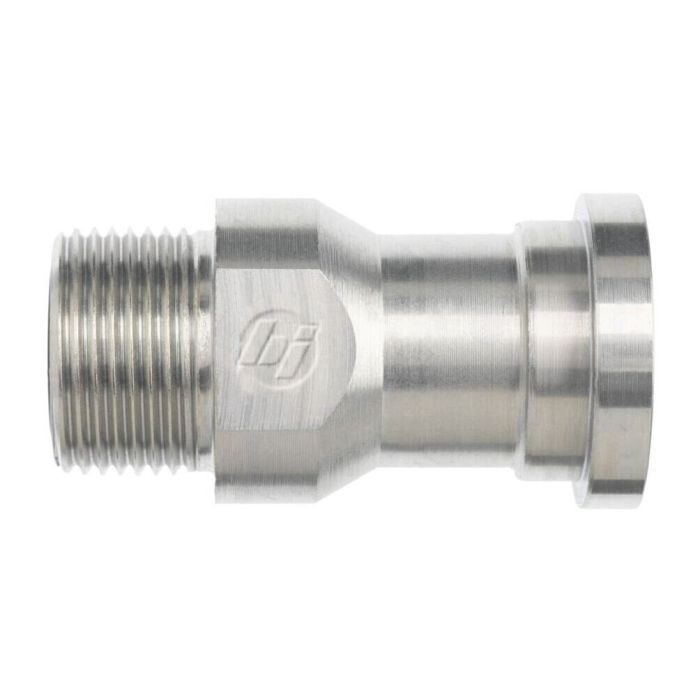

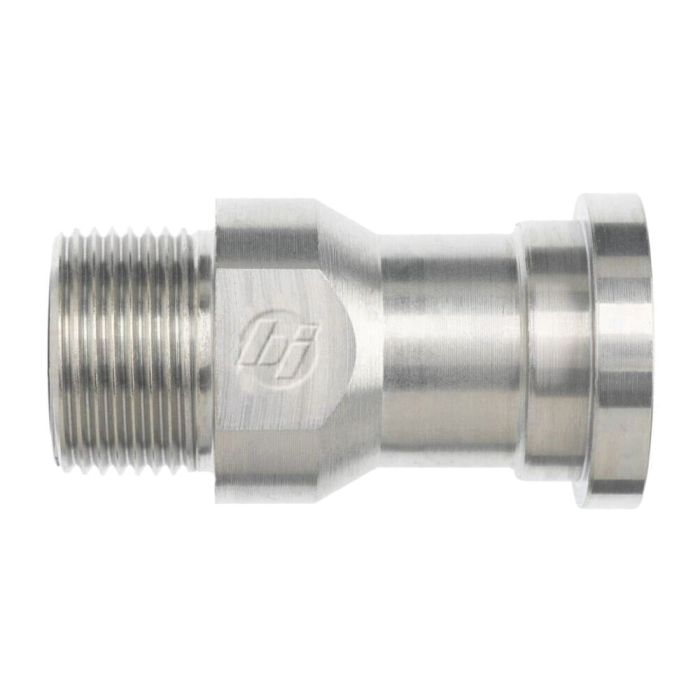

BRENNAN Industries Inc offers a versatile component designed to provide efficient and reliable connections. The FS1800-16-16 is engineered with a robust 1-7/16-12 thread and a 1-inch tube outer diameter ensuring secure and stable fittings in various applications.

With an across-flats size of 1.625 inches and an overall length of 2.280 inches this part delivers ease of installation and maintenance. It is part of the FS1800 series aligning with industry standards for quality and performance.

16MFS-16Flange Straight Code 62 is instrumental in delivering high-quality results maintaining durability and longevity under demanding conditions.

MPN: {{ecc_mpn}}

Supplier Part Number: FS1800-16-16

Specifications

Brand BRENNAN	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Flanged, Male ORFS	Connection Type 1 Male SAE ORFS	Connection Type 2 SAE Code 62 Flange	Dimension Standards SAE J1453, SAE J518	Dimensions 2.8 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-1/2 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series FS1800 Series	Thread Size 1-7/16-12	Tube Outside Diameter 1 in

Product Questions & Answers (1)

Question by: Rod R on Feb 6, 2026, 10:09 AM

What size tube does this flange fit?

Answer by: Customer Support on Feb 7, 2026, 6:13 PM

This flange fits a 1-inch outer diameter tube.
