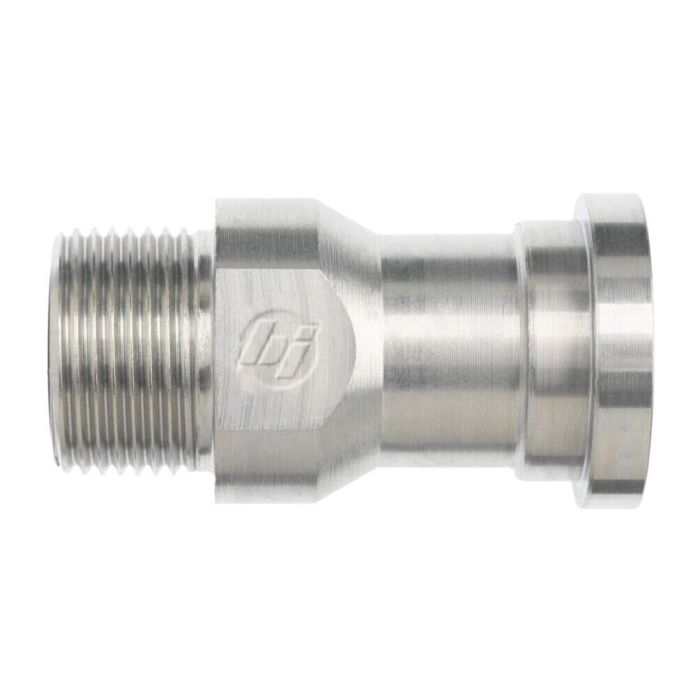

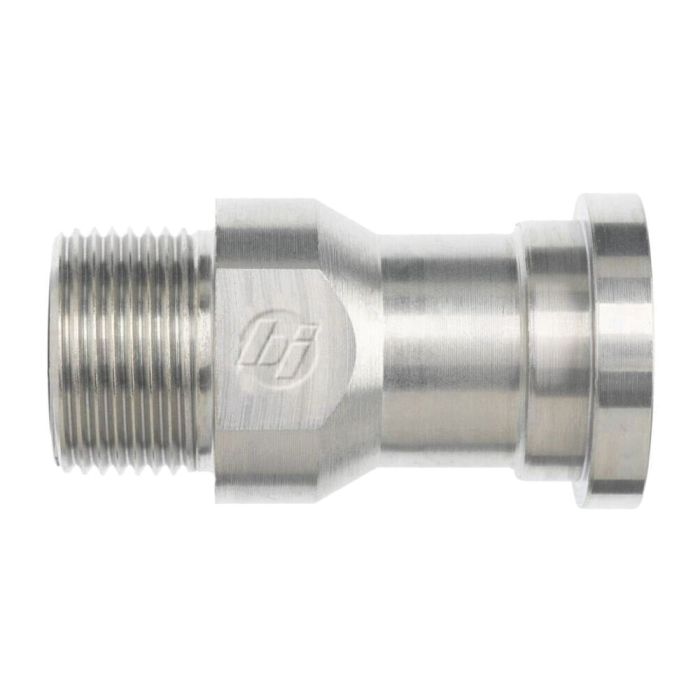

main product photo

16MFS-20Flange Straight Code 62

Ask A Question

Description & Features

Designed for high-pressure hydraulic connections, the 16MFS-20Flange Straight Code 62 is a male flange straight adapter from Brennan Industries, built to Code 62 four-bolt flange specifications. It features a 1-7/16-12 male thread and a 1-1/4 inch flange face, accommodating 1-inch tube OD applications. With an overall length of 3.050 inches and an across-flat dimension of 1.500 inches, this fitting is sized for demanding industrial hydraulic circuits where reliable straight-line flange connections are required.

Part of the Brennan FS1800 series, this adapter is well suited for use in hydraulic systems where Code 62 flange ports are standard, offering a direct male-threaded connection in a compact straight configuration.

SKU: FS1800-16-20

Supplier Part Number (MPN): FS1800-16-20

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J1453, SAE J518
Dimensions
3.05 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/2 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1800 Series
Thread Size
1-7/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Bobby H on Nov 2, 2025, 10:53 AM
Will this fitting work for a 1-inch OD tube in a hydraulic setup requiring a Code 62 flange?
Answer by: Customer Support on Nov 4, 2025, 6:34 AM
This straight adapter is designed specifically for that purpose, featuring a 1-1/4 inch flange face that mates with Code 62 four-bolt flange connections, along with a 1-7/16-12 male thread suitable for 1-inch OD tubing.
