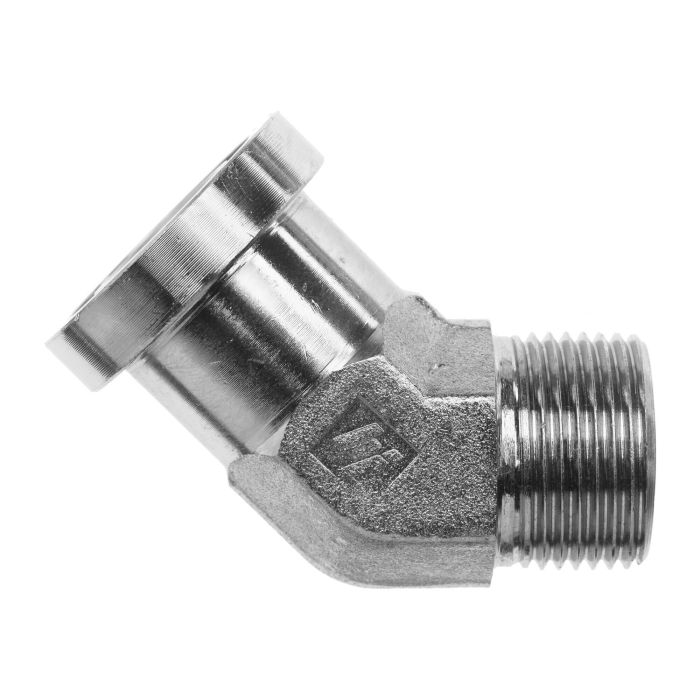

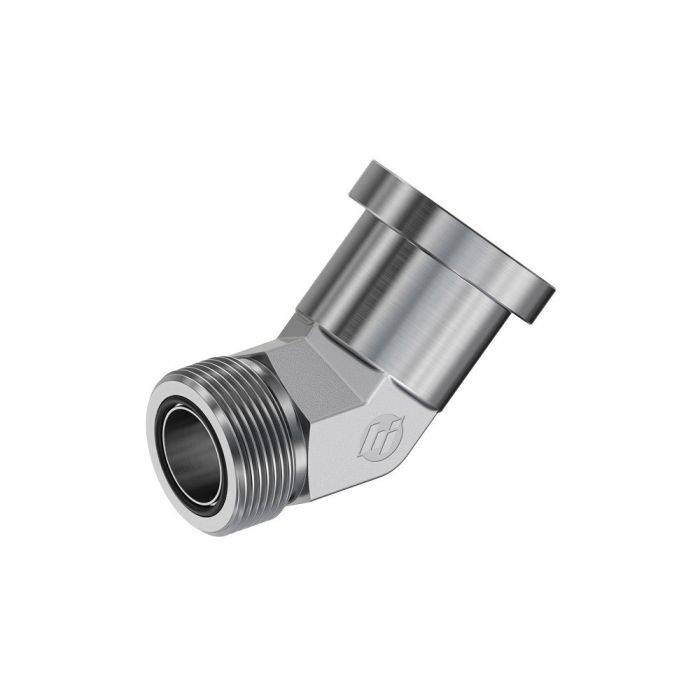

main product photo

16MFS-16FLANGE 45 ELBOW CODE 62

Ask A Question

Description & Features

The 16MFS-16Flange 45 Elbow Code 62 Forg is designed to meet the rigorous demands of industrial applications. This elbow fitting features a 45-degree angle and is forged for durability and reliability. Brennan Industries Inc ensures that each product meets the highest standards of quality and consistency.

The fitting has a thread size of 1-7/16-12 and a flange size of 1 inch providing a robust and precise connection. The across flats (A/F) dimension is 1.312 inches and the lengths L1 and L2 are 1.470 inches and 1.850 inches respectively ensuring compatibility with various system requirements. This product is part of the FS1803-FG series.

Manufactured to withstand challenging environments this elbow fitting is essential for maintaining system integrity and performance. The tube outside diameter is 1 inch making it versatile for multiple configurations and ensuring a secure and leak-free fit.

Supplier Part Number: FS1803-16-16-FG

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J1453, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-3/8 in
l1 Dimensions
1.47 in
l2 Dimensions
1.85 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1803-FG Series
Thread Size
1-7/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (3)

Question by: Todd P on Jun 1, 2025, 8:04 AM
Hey, what size tubing does this elbow fit?
Answer by: Customer Support on Jun 3, 2025, 6:44 AM
This elbow fitting is made for a 1-inch outside diameter tube, so it should give you a nice, secure fit.
Question by: Melvin O on Jan 30, 2026, 6:29 PM
what's the tube OD and flange size on this fitting, trying to make sure it'll mate up right with what we already got running
Answer by: Customer Support on Feb 1, 2026, 8:57 AM
The tube outside diameter is 1 inch and the flange size is also 1 inch. The thread is 1-7/16-12, and the across flats dimension comes in at 1.312 inches. For length, L1 is 1.470 inches and L2 runs 1.850 inches. Those numbers should give you enough to cross-check against your existing setup before you order.
Question by: Daryl P on Jul 19, 2025, 4:22 PM
trying to swap out an elbow on a 1 inch tube line. is this one actually for 1 inch tube OD and a 1 inch flange?
Answer by: Customer Support on Jul 21, 2025, 6:46 AM
The key callouts on this elbow are a 1 inch tube outside diameter and a 1 inch flange size, along with a 1-7/16-12 thread on the male side. It is a 45 degree elbow in the Brennan FS1803-FG series.
