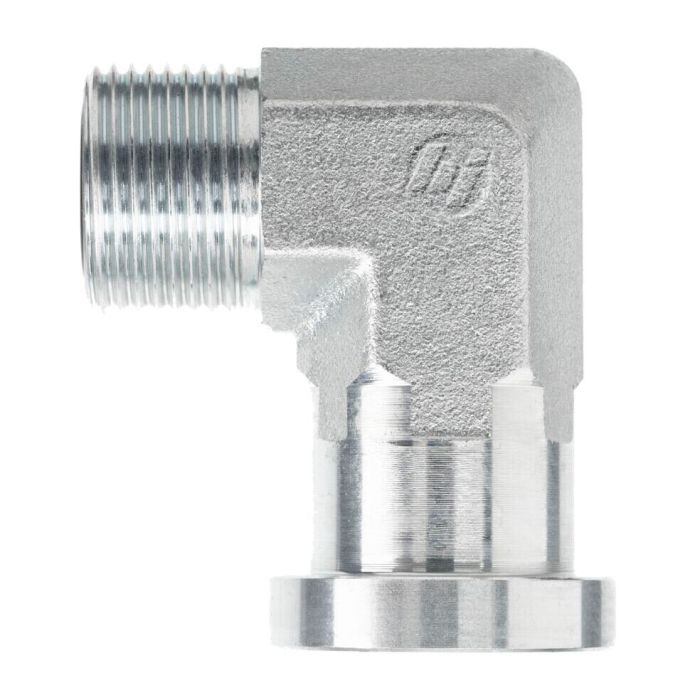

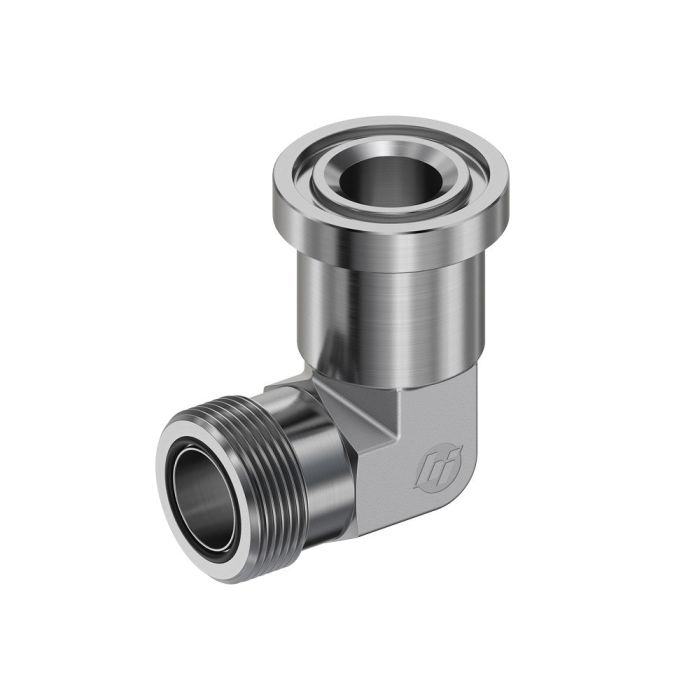

12MFS-12FLANGE 90 ELBOW CODE 62

Ask A Question

Description & Features

The 12MFS-12FLANGE 90 ELBOW CODE 62 by Brennan Industries Inc is designed for applications requiring high-performance connections. It features a 1-3/16-12 thread and a 3/4 flange size ensuring compatibility with industry-standard systems.

With a tube O.D. of 3/4 inches the 12MFS-12Flange 90 Elbow is an ideal component for various technical setups. The 1.062 inch across-flats dimension and lengths of 1.660 inches (L1) and 2.130 inches (L2) contribute to its robust build.

The product falls under the FS1804-FG series known for its reliable performance in demanding environments. Crafted with precision this elbow fitting is essential for ensuring secure and efficient fluid transfer.

Supplier Part Number: FS1804-12-12-FG

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J1453, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.188 in
l1 Dimensions
1.66 in
l2 Dimensions
2.13 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1804-FG Series
Thread Size
1-3/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (3)

Question by: Jimmy W on Sep 27, 2025, 8:28 PM
Hey, will this elbow work with standard hydraulic setups, the kind we use on most of our equipment?
Answer by: Customer Support on Sep 29, 2025, 6:15 AM
This elbow fitting has a 1-3/16-12 thread and a 3/4 flange, which should make it compatible with industry-standard systems. Just double-check that those measurements match your current setup.
Question by: Johnny C on Nov 29, 2025, 8:24 PM
Got a 3/4 inch tube line coming off a pump and I need to make a 90 degree turn without a lot of extra space to work with. This the right fitting for that kind of setup?
Answer by: Customer Support on Dec 1, 2025, 6:59 AM
For a 3/4 inch O.D. tube line, yeah this one fits that bill. The elbow is built around a 3/4 tube O.D. with a 3/4 flange connection on one end and a 1-3/16-12 male thread on the other. The overall footprint is pretty compact at 1.660 inches on the short side and 2.130 inches on the longer dimension, so it should tuck in reasonably well where space is tight. The 90 degree angle handles that direction change right at the fitting.
Question by: Darryl P on Apr 5, 2026, 11:05 AM
trying to swap out an elbow on a 3/4 tube line, is this one the right size?
Answer by: Customer Support on Apr 7, 2026, 6:28 AM
The key callouts on this elbow are a 3/4 inch tube O.D., a 3/4 Code 62 flange size, and a 1-3/16-12 thread. If those match what you are replacing, the sizing lines up.
