16 C62 X 12 MFS

Ask A Question

Description & Features

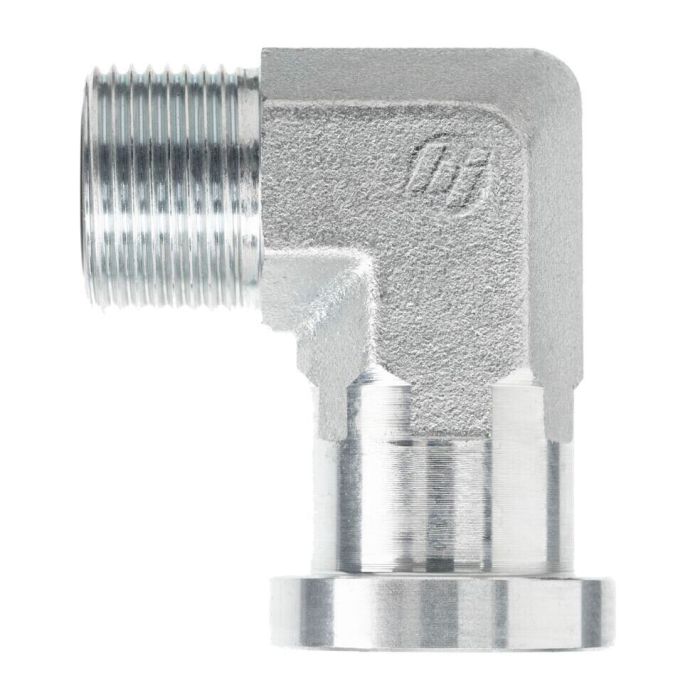

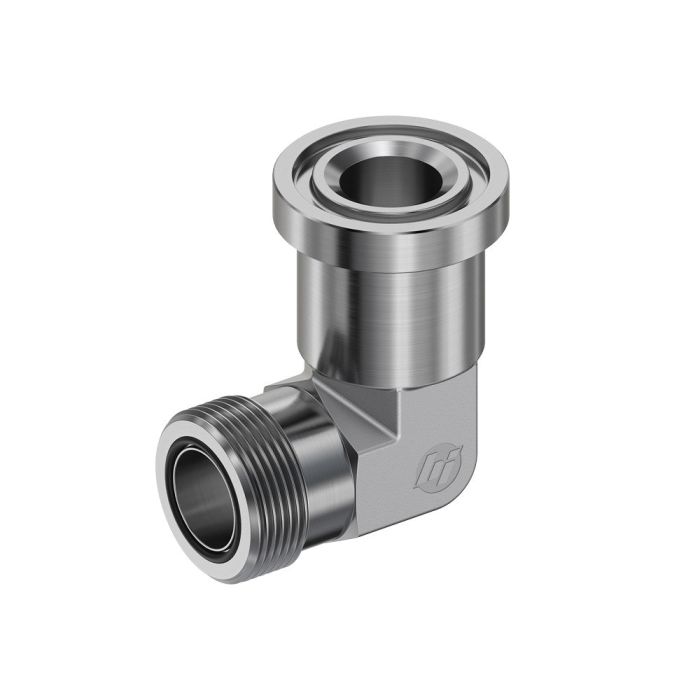

A 90-degree elbow fitting designed for high-pressure hydraulic systems, the 16 C62 X 12 MFS connects a 1-inch Code 62 four-bolt flange to a 1-3/16-12 male face seal (MFS) thread. Manufactured by Brennan Industries as a forged fitting, it is built to handle the demands of heavy-duty hydraulic circuits where a right-angle transition between flange and threaded connections is required.

The fitting features a 3/4-inch tube OD, an across-flats dimension of 1.312 inches, and overall lengths of 1.810 inches and 2.370 inches along its two axes. The FS1804-FG series designation confirms its forged construction, which provides the structural integrity expected in demanding fluid power applications.

SKU: FS1804-12-16-FG

Supplier Part Number (MPN): FS1804-12-16-FG

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J1453, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.188 in
l1 Dimensions
1.81 in
l2 Dimensions
2.37 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1804-FG Series
Thread Size
1-3/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (1)

Question by: Duane W on Jan 4, 2026, 5:04 PM
So this has a flange on one side and threads on the other, right? Just makin' sure I'm seein' it right.
Answer by: Customer Support on Jan 6, 2026, 6:35 AM
Yes, that's correct. This fitting uses a Code 62 four-bolt flange on one end and a 1-3/16-12 male face seal (MFS) thread on the other.
