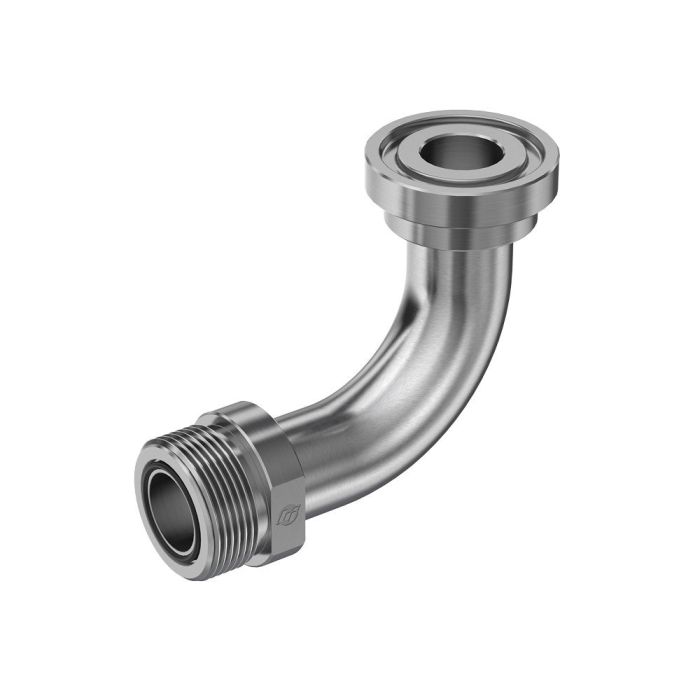

main product photo

16MFS-16FLANGE 90 ELB CODE 62 **TUBED**

Ask A Question

Description & Features

The 16MFS-16FLANGE 90 ELB CODE 62 **TUBED** offers a reliable solution for industrial applications requiring precise fluid transfer. Crafted by Brennan Industries Inc this elbow is designed to meet high standards of performance and durability making it ideal for demanding environments.

This elbow features a robust construction that ensures long-lasting use and minimal maintenance. It is engineered to provide a secure and efficient connection that enhances the integrity of the system. With a 90-degree bend it allows for optimal routing of hydraulic fluids fitting seamlessly into complex layouts.

Its compatibility with Code 62 flanges makes it versatile across various industrial setups. The product's design incorporates precision machining to reduce the risk of leaks and ensure a tight seal under high pressures. The absence of adjustable components simplifies installation and ensures a fixed reliable configuration.

Manufactured without check valves switch connectors or thread sealants the 16MFS-16FLANGE 90 ELB CODE 62 **TUBED** maintains a straightforward design that prioritizes ease of use and reliability. This makes it a preferred choice for professionals looking to maintain high standards in fluid system management.

Supplier Part Number: FS1804-16-16

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
SAE Code 62 Flange
Fitting Type
90 deg Elbow
Hex Size
1.438 in
Material
Steel
Material Construction
S20C Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1804 Series
Thread Size
1-7/16-12

Product Questions & Answers (3)

Question by: Bonnie P on Apr 12, 2025, 1:49 PM
Will this elbow work with standard Code 62 flanges, or are there specific types I need to watch out for?
Answer by: Customer Support on Apr 14, 2025, 8:05 AM
This elbow is compatible with Code 62 flanges, making it a versatile option for different industrial setups.
Question by: Cindy M on Dec 24, 2025, 2:36 PM
Part number FS1804-16-16, is that the same thing as NBFF6892-16-16, or are those two different fittings?
Answer by: Customer Support on Dec 25, 2025, 3:04 PM
Same fitting, two different part numbers. FS1804-16-16 is the primary supplier number from Brennan Industries, and NBFF6892-16-16 is just an alternate reference for the same product. Either one gets you the 16MFS-16FLANGE 90-degree elbow with Code 62 flange compatibility.
Question by: Jerry M on May 30, 2025, 5:11 PM
i’ve got a tight spot in my hydraulic lines, is this the kind of elbow that helps you turn a corner without getting fancy with adapters?
Answer by: Customer Support on Jun 1, 2025, 9:27 AM
With a fixed 90-degree bend, it’s meant to route hydraulic fluid cleanly through tighter layouts where a straight run will not work. It’s a straightforward elbow with no adjustable parts, so once it’s installed you get a set direction for the line.
