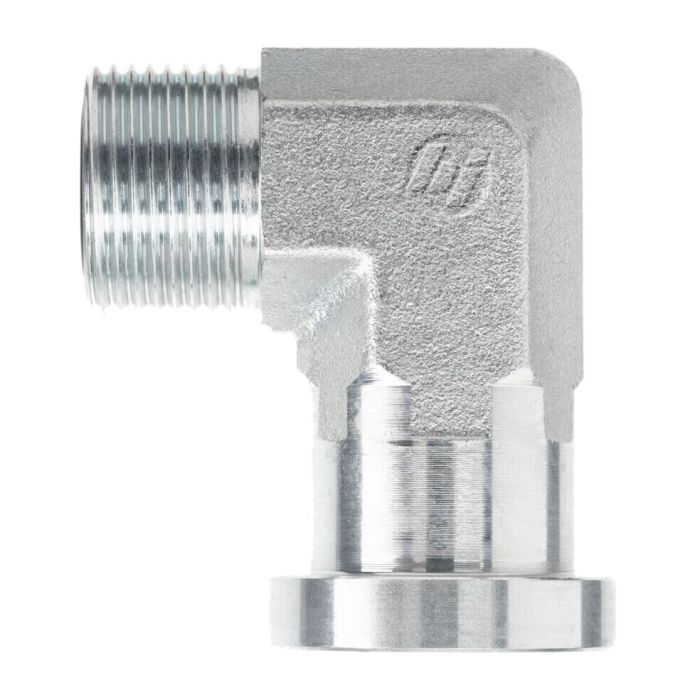

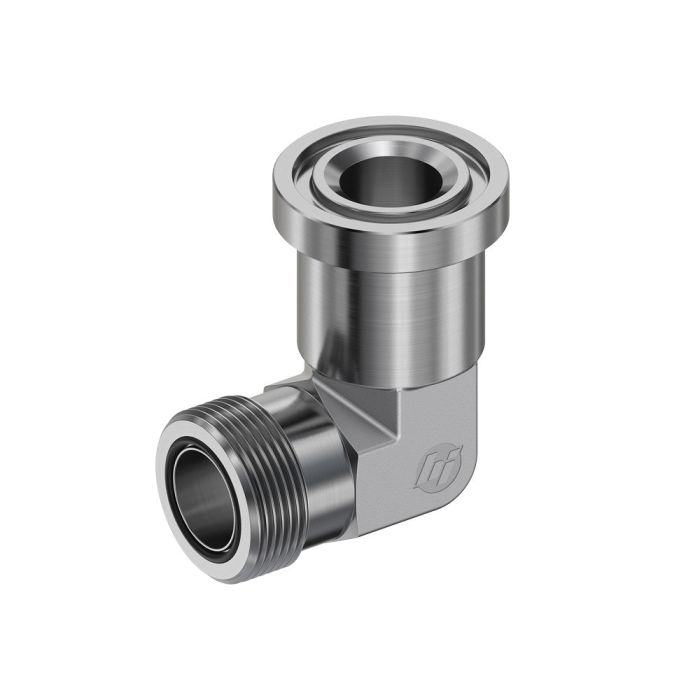

main product photo

16MFS-20Flange 90° Elbow Code 62 Forg

Ask A Question

Description & Features

Designed for high-pressure hydraulic systems requiring a directional change in line routing, this forged 90° elbow connects a 1-inch OD tube via a 1 7/16-12 UN male flareless fitting to a 1 1/4-inch SAE Code 62 four-bolt flange port. The Code 62 flange configuration is suited to demanding hydraulic applications where elevated pressure ratings are required.

The 16MFS-20Flange 90° Elbow Code 62 Forg is part of Brennan Industries' FS1804-FG series and features a forged construction for structural integrity under pressure. With an across-flat dimension of 1.625 inches, an L1 length of 2.100 inches, and an L2 length of 2.760 inches, the fitting provides a compact envelope suitable for installations where space is a consideration.

SKU: FS1804-16-20-FG

Supplier Part Number (MPN): FS1804-16-20-FG

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J1453, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.438 in
l1 Dimensions
2.1 in
l2 Dimensions
2.76 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1804-FG Series
Thread Size
1-7/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Denise W on Aug 8, 2025, 9:28 AM
If I'm hooking up a 1-inch OD tube, this 90-degree elbow should do the trick, right? Just want to make sure before I order.
Answer by: Customer Support on Aug 10, 2025, 6:01 AM
Absolutely, this elbow is designed to connect to a 1-inch OD tube using a 1 7/16-12 UN male flareless fitting.
