BRENNAN 20MFSx16FLANGE 90 ELBW FROG

Description & Features

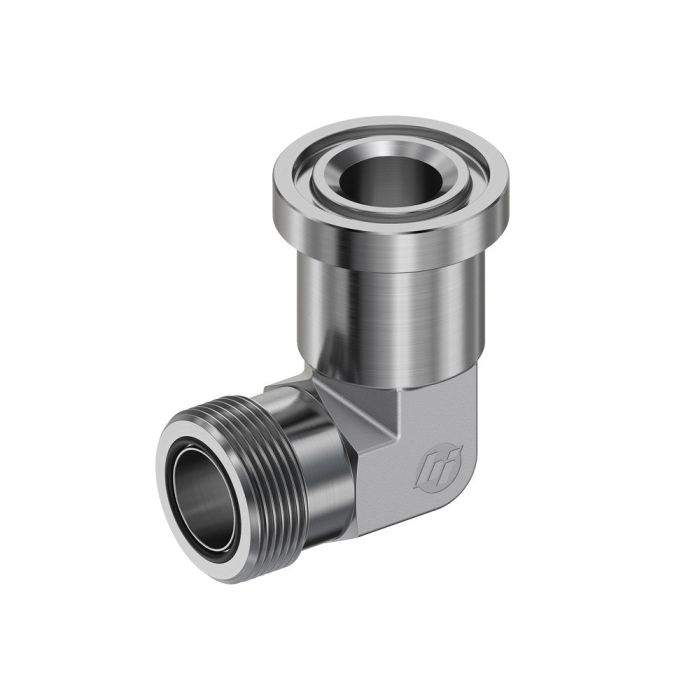

A forged 90-degree elbow fitting designed for high-pressure hydraulic systems, the Brennan 20MFSx16Flange 90 Elbw Frog connects a 1-11/16-12 male facesealmale face seal thread to a 1-inch Code 62 flange port. The forged construction of the FS1804-FG series provides reliable durability in demanding hydraulic line applications where directional changes are required.

Sized for 1-1/4-inch tube OD, this fitting has an across-flat dimension of 1.312 inches, an L1 length of 1.810 inches, and an L2 length of 2.370 inches. The Code 62 flange interface is suited for high-pressure hydraulic circuits, and the 90-degree configuration allows for compact routing where straight adapters are not practical.

SKU: FS1804-20-16-FG

Supplier Part Number (MPN): FS1804-20-16-FG

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J1453, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-5/8
l1 Dimensions
1.81 in
l2 Dimensions
2.37 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1804-FG Series
Thread Size
1-11/16-12
Tube Outside Diameter
1-1/4 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
12MFS-12FLANGE 90 ELBOW CODE 62

FS1804-12-12-FG

3/4 in

3/4 in

1-3/16-12

16 C62 X 12 MFS

FS1804-12-16-FG

3/4 in

1 in

1-3/16-12

16MFS-12FLANGE 90 ELBOW CODE62 FORG

FS1804-16-12-FG

1 in

3/4 in

1-7/16-12

16MFS-16FLANGE 90 ELBOW CODE 62

FS1804-16-16-FG

1 in

1 in

1-7/16-12

16MFS-20Flange 90° Elbow Code 62 Forg

FS1804-16-20-FG

1 in

1-1/4 in

1-7/16-12

20MFS-20FLANGE 90 DEG ELBOW CODE 62 FORG

FS1804-20-20-FG

1-1/4 in

1-1/4 in

1-11/16-12

FS1804-24-24

FS1804-24-24

1-1/2 in

1-1/2 in

2-12
