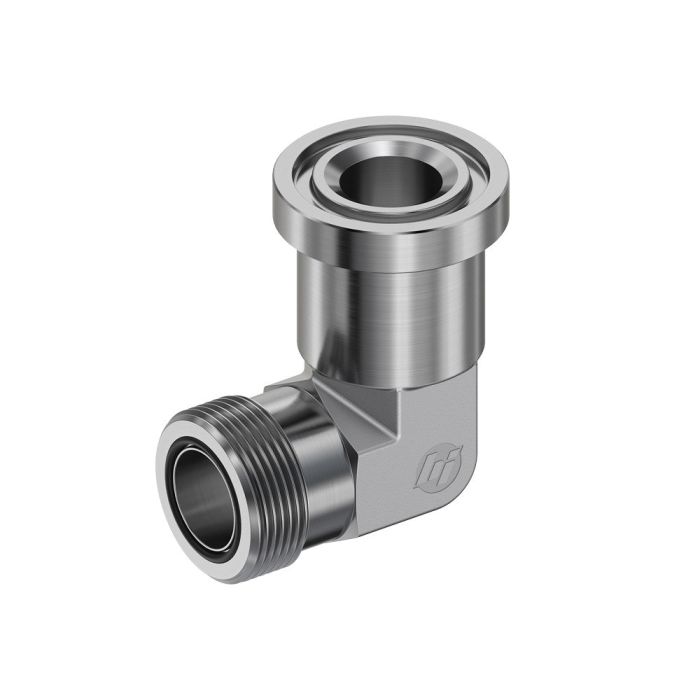

20MFS-20FLANGE 90 DEG ELBOW CODE 62 FORG

Description & Features

This forged 90-degree elbow is built for high-pressure hydraulic systems requiring a reliable male face seal to flange transition. Manufactured by Brennan Industries, the 20MFS-20FLANGE 90 DEG ELBOW CODE 62 FORG features a 1-11/16-12 male face seal thread paired with a 1-1/4 inch Code 62 flange connection, making it suited for demanding fluid power assemblies.

Dimensional specifications include an across-flat measurement of 1.625 inches, an L1 of 2.060 inches, and an L2 of 2.750 inches. The forged construction provides consistent material integrity under pressure. The 1-1/4 inch tube O.D. rating aligns with standard hydraulic line sizing for this connection class.

SKU: FS1804-20-20-FG

Supplier Part Number (MPN): FS1804-20-20-FG

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J1453, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-5/8
l1 Dimensions
2.06 in
l2 Dimensions
2-3/4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1804-FG Series
Thread Size
1-11/16-12
Tube Outside Diameter
1-1/4 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
12MFS-12FLANGE 90 ELBOW CODE 62

FS1804-12-12-FG

3/4 in

3/4 in

1-3/16-12

16 C62 X 12 MFS

FS1804-12-16-FG

3/4 in

1 in

1-3/16-12

16MFS-12FLANGE 90 ELBOW CODE62 FORG

FS1804-16-12-FG

1 in

3/4 in

1-7/16-12

16MFS-16FLANGE 90 ELBOW CODE 62

FS1804-16-16-FG

1 in

1 in

1-7/16-12

16MFS-20Flange 90° Elbow Code 62 Forg

FS1804-16-20-FG

1 in

1-1/4 in

1-7/16-12

BRENNAN 20MFSx16FLANGE 90 ELBW FROG

FS1804-20-16-FG

1-1/4 in

1 in

1-11/16-12

FS1804-24-24

FS1804-24-24

1-1/2 in

1-1/2 in

2-12

Product Questions & Answers (1)

Question by: Curt K on Apr 29, 2025, 7:55 PM
How much room do I need to give myself for this elbow, dimension-wise?
Answer by: Customer Support on May 1, 2025, 5:15 PM
Looking at the dimensions, you'll need 2.060 inches (L1) in one direction and 2.750 inches (L2) in the other, plus the space for your connections. The across-flats is 1.625 inches, if that helps with tight fits.
