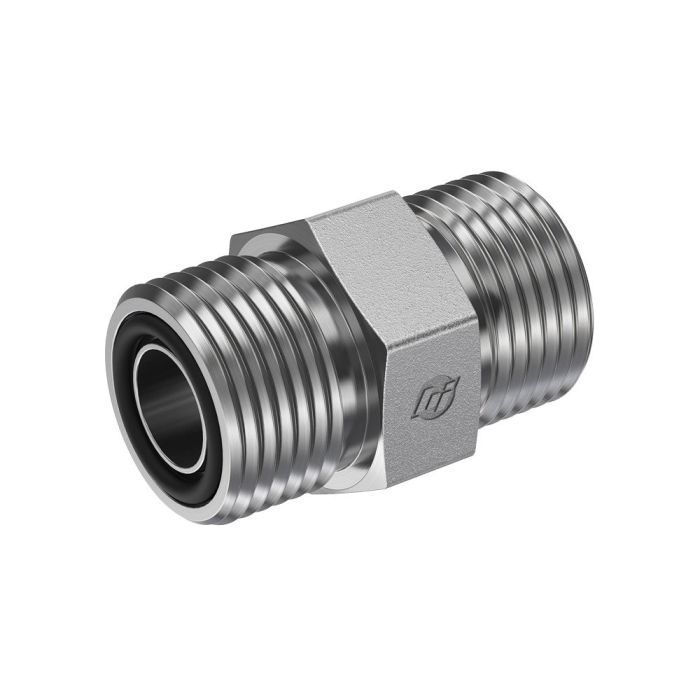

main product photo

06MFS-06MFS STRAIGHT

Ask A Question

Description & Features

The 06MFS-06MFS STRAIGHT by Brennan Industries Inc is designed for precision and reliability in adapter applications. This adapter features a robust 0.750 hex size and a firm length of 1.22 inches ensuring a secure fit and effective connection.

With drill size 0.264 and thread specification 11/16-16 this straight adapter provides a reliable interface for various industrial fluid systems. It supports a tube size of 3/8 inches making it compatible with a wide range of equipment.

The FS2403 Series has been engineered to meet high standards for performance. The consistent dimensions including A1 and A2 tube O.D. both at 3/8 inches guarantee uniformity and quality across installations.

MPN: FS2403-06-06

Supplier Part Number: FS2403-06-06

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.264 in
a2 Drill Dimensions
0.264 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J515
Dimensions
1.22 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
3/4 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS2403 Series
Thread Size
11/16-16
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Product Questions & Answers (2)

Question by: Rhonda E on Oct 3, 2025, 9:18 AM
What size is the hex on this fitting? I need to make sure my wrench will fit.
Answer by: Customer Support on Oct 4, 2025, 7:16 PM
For wrenching, it's got a 0.750 hex size.
Question by: Brett G on Jul 22, 2025, 12:34 PM
Got a 3/8 tube line I'm trying to connect straight through, does this fitting work both ends the same, or is one side different from the other?
Answer by: Customer Support on Jul 24, 2025, 9:08 AM
Both ends are identical on this one. You've got 11/16-16 thread and 3/8 inch tube O.D. on each side, so it's a true straight-through connection with no size change from one end to the other. The hex is 0.750 across, which gives you a solid wrench grip during installation. At 1.22 inches face-to-face, it's a compact fit that won't eat up much space in tight hydraulic connections runs.
