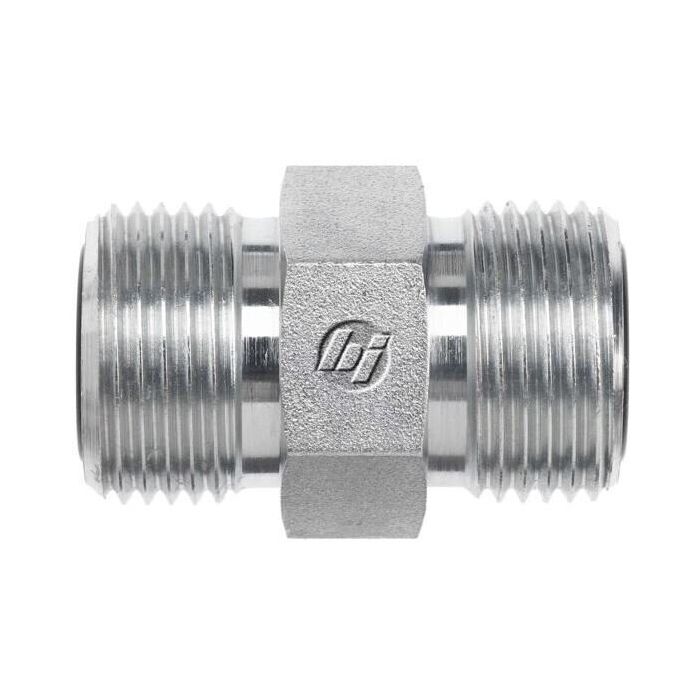

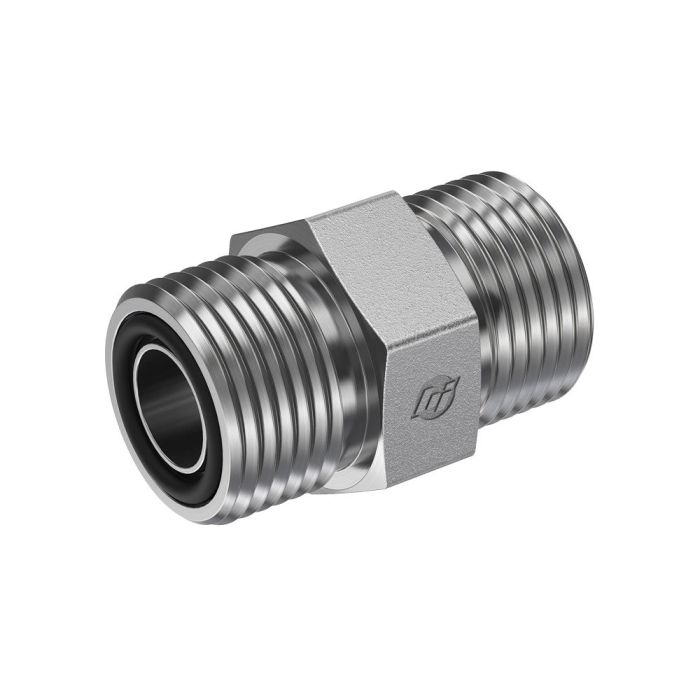

main product photo

08MFS-06MFS STRAIGHT

Ask A Question

Description & Features

The 08MFS-06MFS Straight fitting by Brennan Industries offers precision and reliability for industrial hydraulic applications. This connector features a robust design with a 13/16-16 thread size on one end and an 11/16-16 thread size on the other, accommodating a 1/2 inch tube and a 3/8 inch tube outer diameter, respectively. Its compact form, measuring 1.33 inches in face-to-face length and 0.875 inches across the hex, ensures seamless integration into tight spaces.

Crafted under the FS2403 series, this straight fitting guarantees durability and performance in demanding environments. Ideal for use in hydraulic systems requiring secure and leak-free connections, it meets the standards expected in high-pressure applications. The fitting's construction ensures compatibility with a variety of industrial requirements, making it a versatile choice for system designs.

SKU: FS2403-08-06

Supplier Part Number (MPN): FS2403-08-06

Alternate Part Numbers: AFF2000T0806S, C1ED21, FF2403-08-06

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.264 in
a2 Drill Dimensions
0.264 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J515
Dimensions
1.33 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS2403 Series
Thread Size
13/16-16 x 11/16-16
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Product Questions & Answers (1)

Question by: Eddie J on Dec 19, 2025, 12:16 PM
fitting goes from 1/2 tube on one end to 3/8 on the other -- is that right, or do both ends take the same size?
Answer by: Customer Support on Dec 21, 2025, 6:48 AM
You've got it right. One end is sized for 1/2 inch tube outer diameter with a 13/16-16 thread, and the other end steps down to 3/8 inch tube outer diameter with an 11/16-16 thread. So if you're connecting two different tube sizes in a straight run, this is the fitting that bridges that gap without needing an adapter in between.
