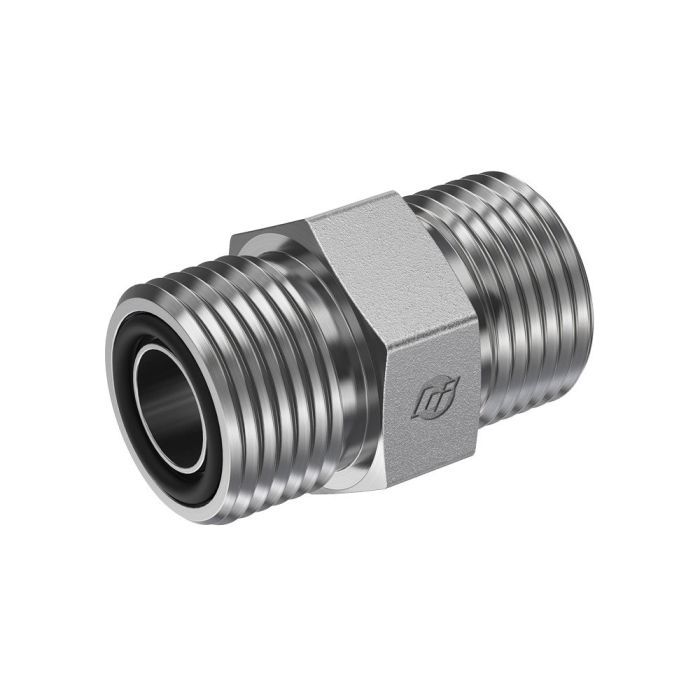

main product photo

16MFS-16MFS STRAIGHT

Ask A Question

Description & Features

This straight fitting, designated as 16MFS-16MFS STRAIGHT, is manufactured by Brennan Industries. It features a 1-7/16-12 thread and a 0.811 drill size on both ends.

This FS2403 series straight fitting has a face-to-face length of 1.94 inches and a hex size of 1.500 inches. It is designed for a 1 inch tube OD on both connections.

SKU: FS2403-16-16

Supplier Part Number (MPN): FS2403-16-16

Alternate Part Numbers: AFF2000T1616S, FF2403-16-16

Specifications

Brand
BRENNAN
a1 Drill Dimensions
0.811 in
a2 Drill Dimensions
0.811 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J515
Dimensions
1.94 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/2 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2403 Series
Thread Size
1-7/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Question by: Wade P on Jul 30, 2025, 4:56 PM
What size tubing does this fitting work with? Just wanna make sure I'm gettin' the right thing.
Answer by: Customer Support on Aug 1, 2025, 8:01 AM
For both connections, this straight fitting is designed to work with 1 inch OD tubing. It's got that 1-7/16-12 thread on both ends too.
