24MFS-24MFS STRAIGHT

Ask A Question

Description & Features

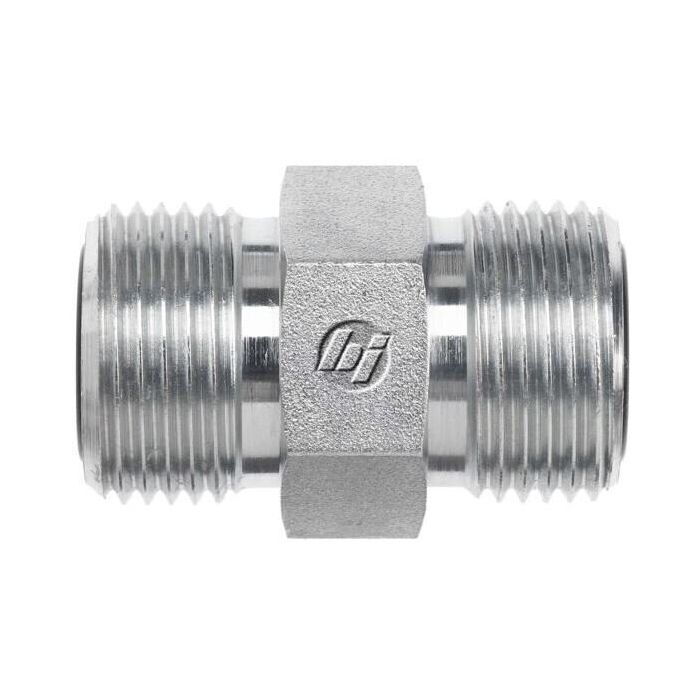

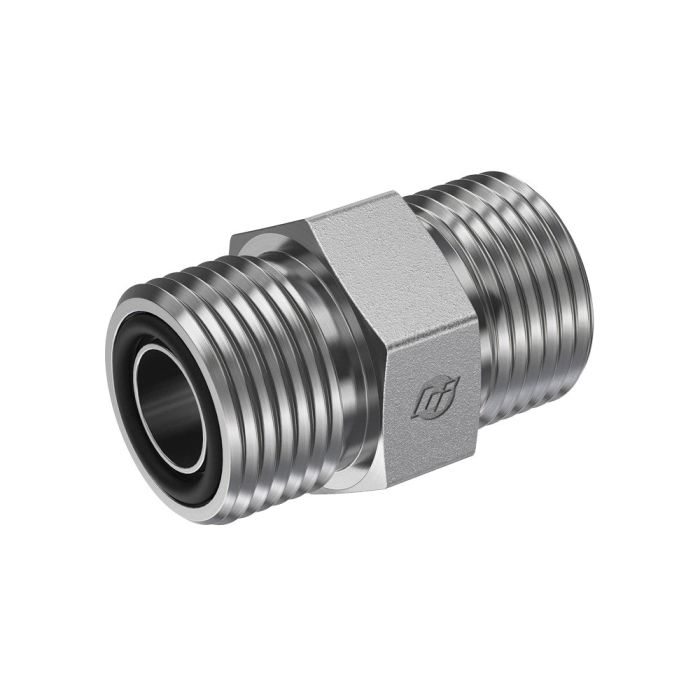

The 24MFS-24MFS Straight from Brennan Industries Inc is a highly reliable adapter designed for optimal performance in various industrial applications. It features a 2.09 full length and a precision-manufactured H hex of 2.125 ensuring a robust and secure fit.

Engineered with a 1.260 A1 drill and 2-12 A1 thread for maximum compatibility this straight adapter also includes a 1-1/2 A1 tube size. The other end mirrors these exact specifications with a 1.260 A2 drill 2-12 A2 thread and 1-1/2 A2 tube O.D. making it versatile and dependable.

The product falls under the FS2403 series representing high standards of quality and durability in industrial settings. Ensuring seamless transitions and coupling the 24MFS-24MFS Straight is a fundamental component for maintaining efficient workflows.

Supplier Part Number: FS2403-24-24

Specifications

Brand
BRENNAN
a1 Drill Dimensions
1.26 in
a2 Drill Dimensions
1.26 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J515
Dimensions
2.09 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2-1/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2403 Series
Thread Size
2-12
Tube Outside Diameter
1-1/2 in

Product Questions & Answers (1)

Question by: Cody C on Mar 28, 2026, 8:53 PM
trying to swap out an old straight adapter, is this one the same on both ends or is it mixed sizes
Answer by: Customer Support on Mar 30, 2026, 4:42 PM
Both ends match on this adapter. It is 2-12 thread on the A1 side and 2-12 thread on the A2 side, with a 1.260 drill on each end and a 1-1/2 tube size and tube O.D. listed for the two ends.
