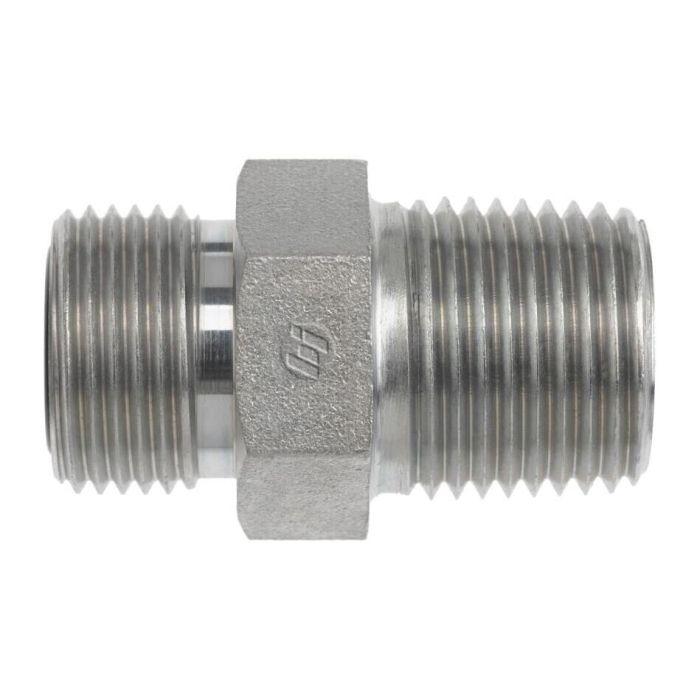

06MFS-06MP STRAIGHT

Description & Features

The 06MFS-06MP STRAIGHT from Brennan Industries Inc is a high-quality adapter designed for efficient and reliable connections in various industrial applications. This component is part of the FS2404 series and has a consistent Tube O.D. of 3/8.

It features an A Drill of 0.264 and an A Thread of 11/16-16 ensuring precise fitment and stable performance. Additionally the B Drill also measures 0.264 with a B Thread of 3/8-18 making it versatile for different industrial setups.

The adapter's length is 1.34 inches with a hex size of 0.750 allowing for easy installation and maintenance. These specifications contribute to its robust functionality and durability in demanding environments.

MPN: FS2404-06-06

Supplier Part Number: FS2404-06-06

Specifications

Brand BRENNAN	a Drill Dimensions 0.264 in	b Drill Dimensions 0.264 in	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Male ORFS, MNPT	Connection Type 1 Male SAE ORFS	Connection Type 2 Male SAE 30 deg NPTF	Dimension Standards SAE J1453, SAE J476, SAE J515	Dimensions 1.34 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 3/4 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series FS2404 Series	Thread Size 11/16-16 x 3/8-18	Tube OD 3/8 in	Tube Outside Diameter 0.38 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
FF2404-04-02	1/4 in	1/8 in	9/16-18 x 1/8-27
FF2404-06-04	3/8 in	1/4 in	11/16-16, 1/4-18
FS2404-04-04	1/4 in	1/4 in	1/4-18 x 9/16-18
FS2404-06-02	3/8 in	1/8 in	11/16-16, 1/8-27
FS2404-06-08	3/8 in	1/2 in	11/16-16 x 1/2-14
FS2404-08-06	1/2 in	3/8 in	13/16-16 x 3/8-18
FS2404-08-08	1/2 in	1/2 in	13/16-16 x 13/16-16 x 1/2-14
FS2404-08-12 Steel Male ORS To NPT Adapter	1/2 in	3/4 in	13/16-16, 3/4-14
FS2404-10-08	5/8 in	1/2 in	1-14 x 1/2-14
FS2404-10-12	5/8 in	3/4 in	1-14 x 3/4-14
FS2404-10-16 Steel Male ORS To NPT Adapter	5/8 in	1 in	1-14 x 1-11-1/2
FS2404-12-08	3/4 in	1/2 in	1-3/16-12 x 1/2-14
FS2404-12-12	3/4 in	3/4 in	1-3/16-12 x 3/4-14
FS2404-12-16	3/4 in	1 in	1-3/16-12 x 1-11-1/2
FS2404-16-12	1 in	3/4 in	1-7/16-12 x 3/4-14
FS2404-16-16	1 in	1 in	1-7/16-12 x 1-11-1/2
FS2404-20-16	1-1/4 in	1 in	1-11/16-12, 1-11-1/2
FS2404-24-24	1-1/2 in	1-1/2 in	2-12 x 1-1/2-11-1/2

Product Questions & Answers (3)

Question by: Ricky R on Oct 22, 2025, 8:56 AM

Will this fitting hold up okay in a hydraulic setup, or is it more for lower-pressure stuff?

Answer by: Customer Support on Oct 23, 2025, 3:42 PM

This adapter is designed for robust functionality and durability in demanding industrial environments, so it should handle typical hydraulic pressures well.

Question by: Lynn R on Nov 19, 2025, 8:43 AM

trying to swap an old adapter out, is this one the straight 3/8 tube size with the 11/16-16 on one end and 3/8-18 on the other?

Answer by: Customer Support on Nov 21, 2025, 6:43 AM

The key callouts match what you described: it is a straight adapter with a 3/8 tube O.D., A thread 11/16-16, and B thread 3/8-18. Both the A and B drill sizes are 0.264.

Question by: Wade H on Aug 1, 2025, 12:43 PM

what thread size is on the NPT end of this fitting? trying to match it up to some existing pipe fittings we got on the machine

Answer by: Customer Support on Aug 2, 2025, 4:22 PM

The pipe thread side runs 3/8-18, which is a standard 3/8 NPT thread. That size is real common on a lot of hydraulic and pneumatic setups, so matching it up to existing fittings usually ain't much of a problem.
