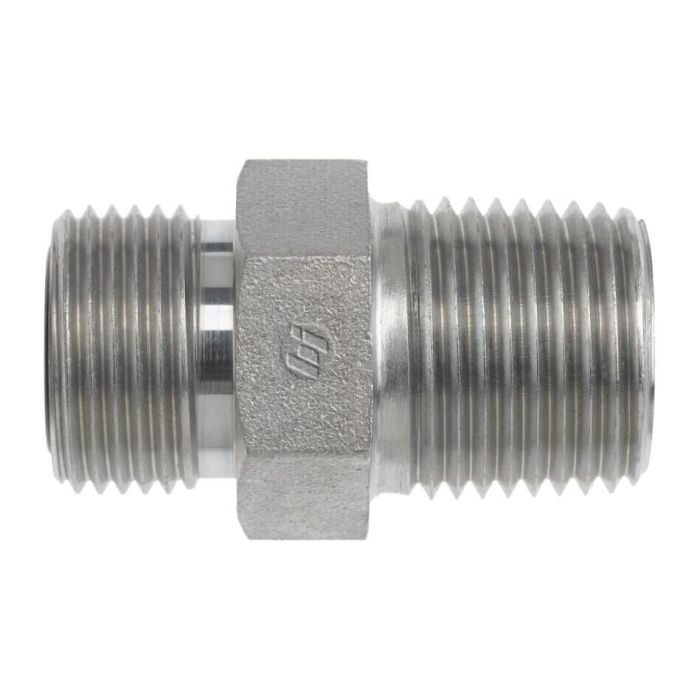

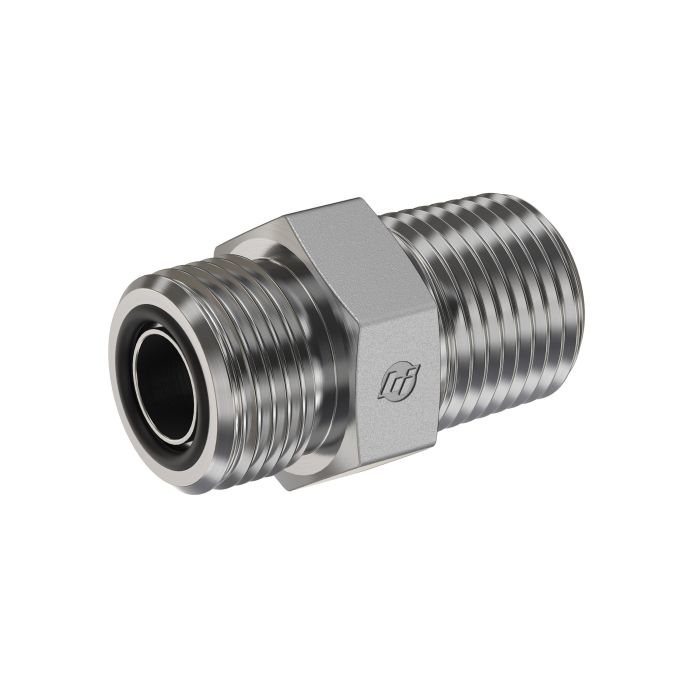

08MFS-06MP STRAIGHT

Ask A Question

Description & Features

The 08MFS-06MP STRAIGHT from Brennan Industries Inc is designed for precise and reliable connection requirements. This component features a durable construction with a series designation of FS2404 ensuring compatibility and performance.

With a drill size of 0.378 inches and a thread specification of 13/16-16 on the A end it integrates seamlessly with various hydraulic systems. The B end also measures 0.378 inches in drill size and features a 3/8-18 thread making it versatile for multiple applications.

Its full-length measurement is 1.45 inches providing a compact yet effective solution. The hex size of 0.875 inches allows for easy installation and secure fitting. Additionally the tube outer diameter is 1/2 inch which ensures efficient fluid transfer in industrial settings.

Supplier Part Number: FS2404-08-06

Specifications

Brand
BRENNAN
a Drill Dimensions
0.378 in
b Drill Dimensions
0.378 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Male ORFS, MNPT
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1453, SAE J476, SAE J515
Dimensions
1.45 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2404 Series
Thread Size
13/16-16 x 3/8-18
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Jimmy M on Sep 4, 2025, 10:34 AM
What size wrench do I need to tighten this fitting down good and snug?
Answer by: Customer Support on Sep 6, 2025, 8:08 AM
You'll want an 0.875 inch wrench, which should let you get a good grip on the hex part for tightening.
Question by: Dustin H on Feb 17, 2026, 3:58 PM
Part number on my old fitting is worn down pretty bad, but I'm pretty sure it's a 1/2 inch tube OD straight fitting with a 3/8-18 thread on one end. This the right one?
Answer by: Customer Support on Feb 19, 2026, 6:44 AM
Sounds like a solid match. The B end on this fitting runs a 3/8-18 thread, and the tube OD is 1/2 inch. The A end comes in at 13/16-16, so as long as that lines up with what you're connecting to on the other side, you'd be good to go. Supplier part number is FS2404-08-06, and it also crosses to AFF2031T0806S and FF2404-08-06 if either of those rings a bell from your old paperwork.
Question by: Todd D on Oct 28, 2025, 6:59 AM
trying to swap out an old straight fitting, what threads does this one have on each end?
Answer by: Customer Support on Oct 29, 2025, 1:20 PM
On the A end it uses a 13/16-16 thread, and on the B end it uses a 3/8-18 thread. Both ends list a 0.378 inch drill size.
