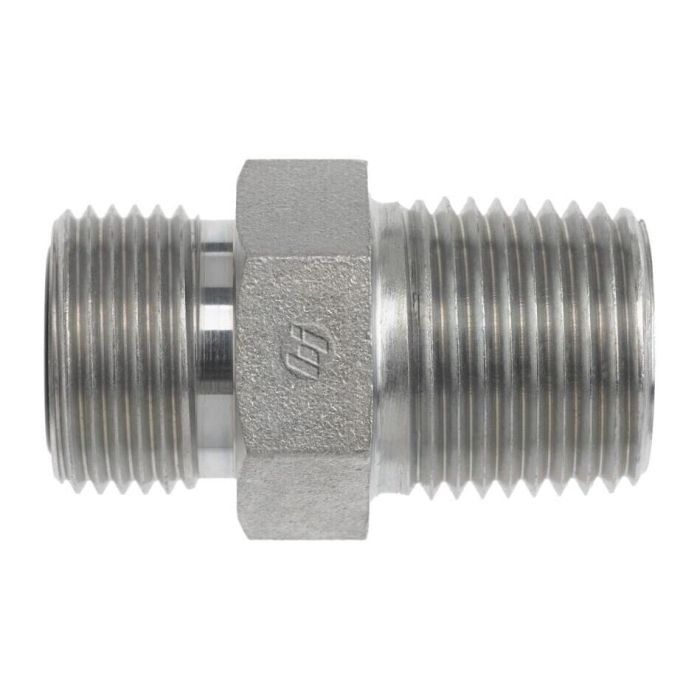

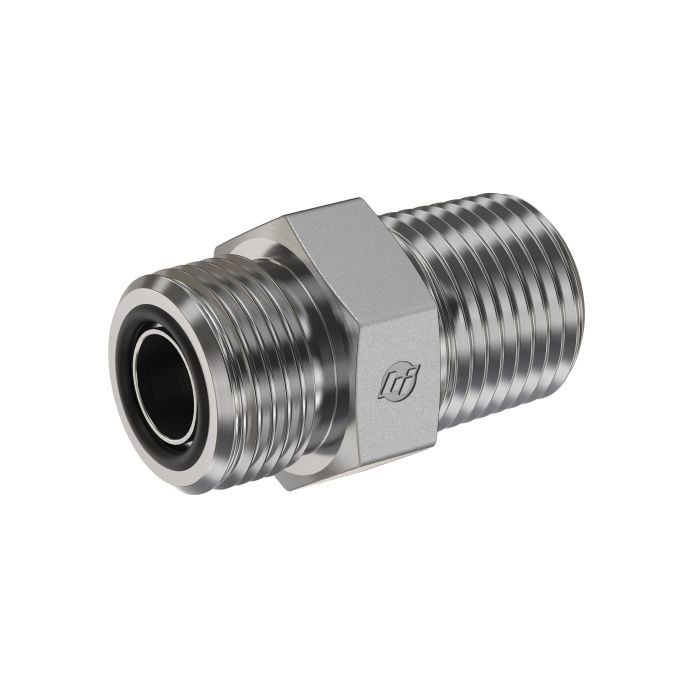

08MFS-08MP STRAIGHT

Description & Features

The 08MFS-08MP STRAIGHT, also known as a straight fitting, features a 13/16-16 Brennan A thread and a 1/2-14 Brennan B thread.

It has a 0.378 Brennan A drill and a 0.378 Brennan B drill, with a 0.938 Brennan H hex and a 1.640 Brennan FF length. This fitting is part of the FS2404 Brennan series and accommodates a 1/2 inch tube OD.

SKU: FS2404-08-08

Supplier Part Number (MPN): FS2404-08-08

Alternate Part Numbers: AFF2031T0808S, FF2404-08-08

Specifications

Brand BRENNAN	a Drill Dimensions 0.378 in	b Drill Dimensions 0.378 in	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Male ORFS, MNPT	Connection Type 1 Male SAE ORFS	Connection Type 2 Male SAE 30 deg NPTF	Dimension Standards SAE J1453, SAE J476, SAE J515	Dimensions 1.64 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 0.94 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series FS2404 Series	Thread Size 13/16-16 x 13/16-16 x 1/2-14	Tube OD 1/2 in	Tube Outside Diameter 1/2 in

Product Questions & Answers (2)

Question by: Hubert G on Nov 3, 2025, 4:17 PM

got a 1/2 inch tube line, is this straight fitting the right size for that?

Answer by: Customer Support on Nov 4, 2025, 9:59 PM

For tube size, it matches a 1/2 inch tube OD. That is the tube size this FS2404-08-08 straight fitting is built around.

Question by: Shane S on Jul 20, 2025, 7:18 PM

Will this fitting work with a half-inch OD tube?

Answer by: Customer Support on Jul 22, 2025, 7:01 AM

This straight fitting is designed to accommodate a 1/2 inch tube OD, according to the product specifications.
