ADAPTER 12MFF-8MP

Description & Features

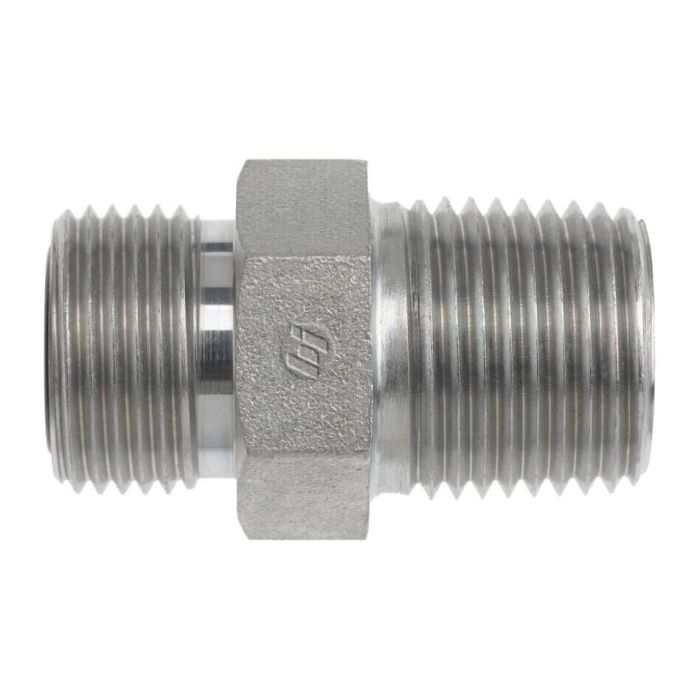

The Brennan Industries Inc adapter is part of the FS2404 series designed for high-standard industrial applications. This robust adapter features a 0.609 drill size and a 1-3/16-12 thread size for the A dimension and a 0.531 drill size with a 1/2-14 thread size for the B dimension.

It boasts a hex size of 1.250 and a flat length of 1.94 ensuring reliability and durability in demanding setups. Crafted for precision the adapter's tube outside diameter measures 3/4.

Ideal for critical industry-specific parts this adapter assures quality and efficiency. The straightforward 12MFS-08MP Straight configuration streamlines connections contributing to operational integrity and safety.

Supplier Part Number: FS2404-12-08

Specifications

Brand BRENNAN	a Drill Dimensions 0.609 in	b Drill Dimensions 0.531 in	Connection Size 1 3/4 in	Connection Size 2 1/2 in	Connection Type Male ORFS, MNPT	Connection Type 1 Male SAE ORFS	Connection Type 2 Male SAE 30 deg NPTF	Dimension Standards SAE J1453, SAE J476, SAE J515	Dimensions 1.94 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-1/4	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 5500 psi	Operating Temperature -40 to 250 deg F	Series FS2404 Series	Thread Size 1-3/16-12 x 1/2-14	Tube Outside Diameter 3/4 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
FF2404-04-02	1/4 in	1/8 in	9/16-18 x 1/8-27
FF2404-06-04	3/8 in	1/4 in	11/16-16, 1/4-18
FS2404-04-04	1/4 in	1/4 in	1/4-18 x 9/16-18
FS2404-06-02	3/8 in	1/8 in	11/16-16, 1/8-27
FS2404-06-06	3/8 in	3/8 in	11/16-16 x 3/8-18
FS2404-06-08	3/8 in	1/2 in	11/16-16 x 1/2-14
FS2404-08-06	1/2 in	3/8 in	13/16-16 x 3/8-18
FS2404-08-08	1/2 in	1/2 in	13/16-16 x 13/16-16 x 1/2-14
FS2404-08-12 Steel Male ORS To NPT Adapter	1/2 in	3/4 in	13/16-16, 3/4-14
FS2404-10-08	5/8 in	1/2 in	1-14 x 1/2-14
FS2404-10-12	5/8 in	3/4 in	1-14 x 3/4-14
FS2404-10-16 Steel Male ORS To NPT Adapter	5/8 in	1 in	1-14 x 1-11-1/2
FS2404-12-12	3/4 in	3/4 in	1-3/16-12 x 3/4-14
FS2404-12-16	3/4 in	1 in	1-3/16-12 x 1-11-1/2
FS2404-16-12	1 in	3/4 in	1-7/16-12 x 3/4-14
FS2404-16-16	1 in	1 in	1-7/16-12 x 1-11-1/2
FS2404-20-16	1-1/4 in	1 in	1-11/16-12, 1-11-1/2
FS2404-24-24	1-1/2 in	1-1/2 in	2-12 x 1-1/2-11-1/2

Product Questions & Answers (2)

Question by: Stan R on Sep 27, 2025, 3:59 PM

trying to replace an old FS2404-12-08 adapter, is this the same part as 12MFF-8MP?

Answer by: Customer Support on Sep 29, 2025, 8:50 AM

For a direct match, the supplier part number on this adapter is FS2404-12-08, and it is in the Brennan FS2404 series. It is also cross-referenced to alternate numbers like AFF2031T1208S, C1ED34, FF2404-12-08, MI-00264416, and MINO-00028F00085.

Question by: Dean Y on Aug 1, 2025, 9:19 AM

Will this adapter hold up okay in a hydraulic setup that sees pretty consistent use?

Answer by: Customer Support on Aug 2, 2025, 12:46 PM

Crafted for demanding industrial environments, this adapter is built with durability in mind. The robust design and precise dimensions, like the 1.250 hex size and 1.94 flat length, help ensure it can handle consistent use.
