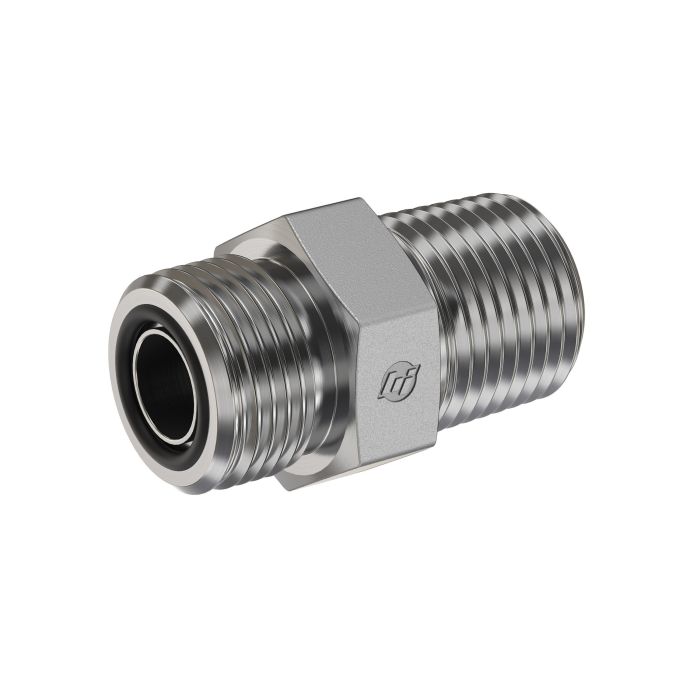

12MFS-16MP STRAIGHT

Description & Features

This straight fitting features a 1-3/16-12 A thread and a 1-11-1/2 B thread.

The 12MFS-16MP STRAIGHT has a 0.609 Brennan A drill and a 0.938 Brennan B drill. It features a 3/4 inch tube OD and a 1.375 inch hex size. This FS2404 series fitting has a 2.130 inch FF length.

SKU: FS2404-12-16

Supplier Part Number (MPN): FS2404-12-16

Alternate Part Numbers: AFF2031T1216S, FF2404-12-16

Specifications

Brand BRENNAN	a Drill Dimensions 0.609 in	Connection Size 1 3/4 in	Connection Size 2 1 in	Connection Type Male ORFS, MNPT	Connection Type 1 Male SAE ORFS	Connection Type 2 Male SAE 30 deg NPTF	Dimension Standards SAE J1453, SAE J476, SAE J515	Dimensions 2.06 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1.312 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 4500 psi	Operating Temperature -40 to 250 deg F	Series FS2404 Series	Thread Size 1-3/16-12 x 1-11-1/2	Tube Outside Diameter 3/4 in

Product Questions & Answers (1)

Question by: Brett A on Mar 20, 2026, 7:13 PM

So, this has two different thread sizes, right? What are they actually used for?

Answer by: Customer Support on Mar 22, 2026, 6:49 AM

This fitting uses the A thread (1-3/16-12) and the B thread (1-11-1/2) to connect different components within a hydraulic system. The different thread sizes allow for adapting between various port sizes.
