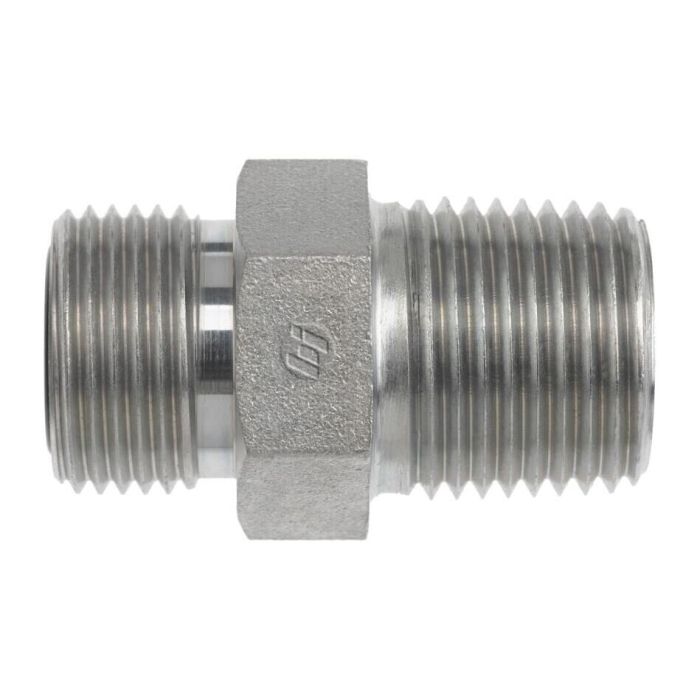

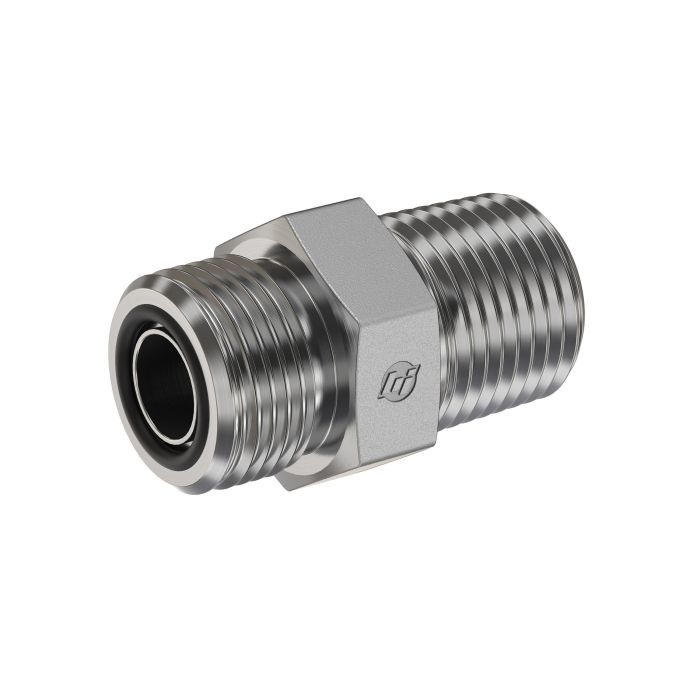

main product photo

16MFS-12MP STRAIGHT

Ask A Question

Description & Features

Designed to meet the rigorous demands of industrial applications, the FS2404-16-12 Straight fitting from Brennan Industries is a robust choice for fluid transfer systems. Featuring a 1-inch tube outer diameter and precision-machined threads, this fitting ensures a secure and reliable connection. With a drill size of 0.811 inches and a thread specification of 1-7/16-12 on the A side, paired with a 0.719-inch drill size and 3/4-14 thread on the B side, it provides versatility for a range of setups.

The 16MFS-12MP STRAIGHT fitting incorporates a hex size of 1.500 inches, facilitating easy installation and removal. With an overall length of 2.00 inches, this fitting is engineered for optimal integration into complex hydraulic systems. Its compatibility with various industrial components enhances its functionality, making it a dependable choice for professionals seeking durable and efficient fittings.

SKU: FS2404-16-12

Supplier Part Number (MPN): FS2404-16-12

Alternate Part Numbers: AFF2031T1612S, FF2404-16-12

Specifications

Brand
BRENNAN
a Drill Dimensions
0.811 in
b Drill Dimensions
0.719 in
Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
Male ORFS, MNPT
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1453, SAE J476, SAE J515
Dimensions
2 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/2 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
5500 psi
Operating Temperature
-40 to 250 deg F
Series
FS2404 Series
Thread Size
1-7/16-12 x 3/4-14
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Janet S on May 21, 2025, 1:41 PM
Will this here fitting hold up okay in a hydraulic setup for some heavy equipment?
Answer by: Customer Support on May 22, 2025, 4:49 PM
For demanding industrial jobs, this fitting is a solid choice for transferring fluids. It's built with precise threads to keep the connection secure and reliable under pressure.
