20MFS-16MP STRAIGHT

Ask A Question

Description & Features

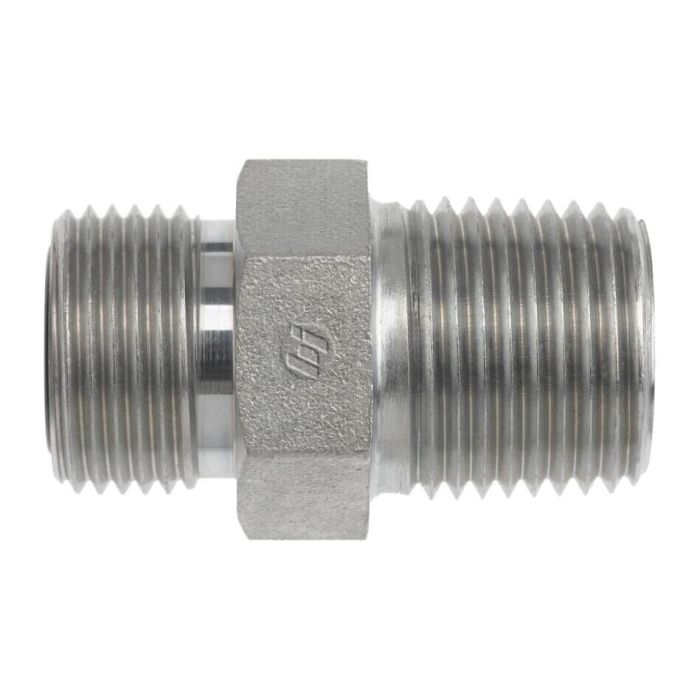

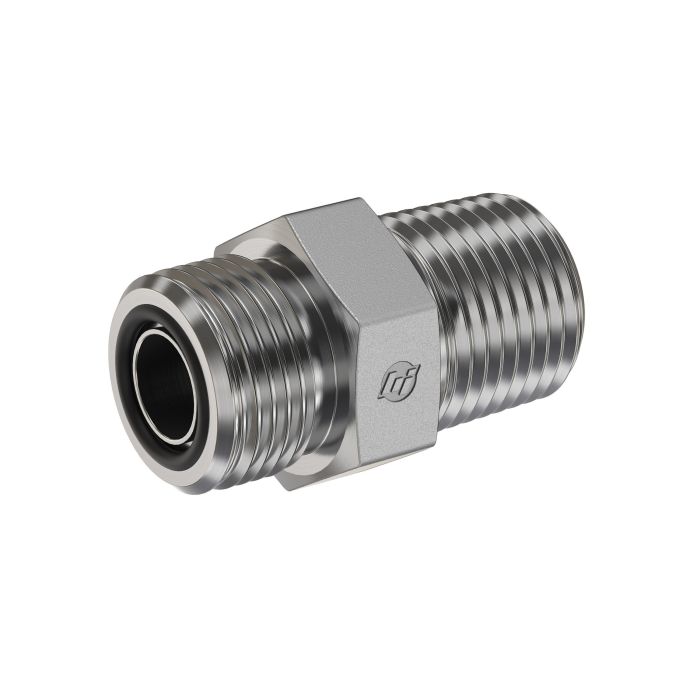

A straight hydraulic adapter from Brennan Industries, the 20MFS-16MP Straight connects a 1-1/4 inch OD tube end to a 1-11/16-12 male thread on one side and a 1-11-1/2 male thread on the other. The face-to-face length measures 2.27 inches, with a 1.750 inch hex for secure wrench engagement during installation.

Part of Brennan's FS2404 series, this fitting is suited for straight-run hydraulic connections where a compact, in-line adapter is required between differing thread forms. Drill dimensions of 1.024 inches on the A end and 0.938 inches on the B end reflect the respective port sizing for each connection.

SKU: FS2404-20-16

Supplier Part Number (MPN): FS2404-20-16

Alternate Part Numbers: AFF2031T2016S, FF2404-20-16

Specifications

Brand
BRENNAN
a Drill Dimensions
1.024 in
b Drill Dimensions
0.938 in
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
Male ORFS, MNPT
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1453, SAE J476, SAE J515
Dimensions
2.27 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-3/4 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
4500 psi
Operating Temperature
-40 to 250 deg F
Series
FS2404 Series
Thread Size
1-11/16-12, 1-11-1/2
Tube Outside Diameter
1-1/4 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Terry M on Jan 11, 2026, 5:15 PM
So this thing connects different sized threads, right? Just wanna make sure I'm understanding it correctly before I order.
Answer by: Customer Support on Jan 12, 2026, 9:31 PM
Yes, that's correct. It's designed to connect a 1-1/4 inch OD tube end to a 1-11/16-12 male thread on one side and a 1-11-1/2 male thread on the other.
