10FFS-08MFS STRAIGHT

Ask A Question

Description & Features

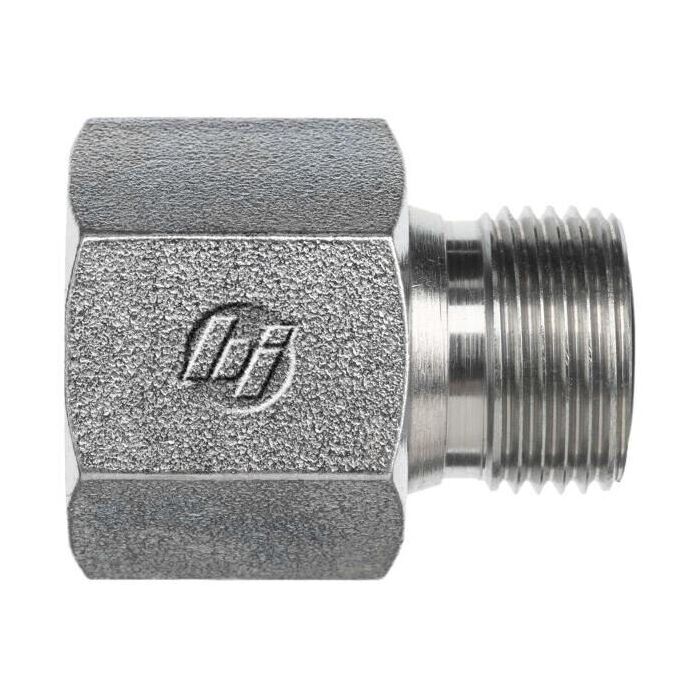

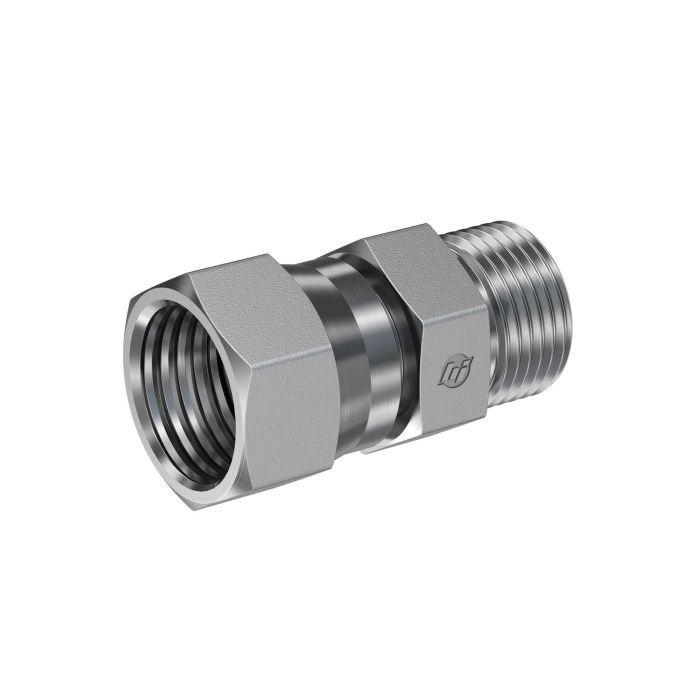

The 10FFS-08MFS Straight connector from Brennan Industries Inc is an essential component in the FS2406 series. Designed for reliability and robust performance this connector features a 1-14 thread and a 5/8 tube O.D. on the A1 side while the A2 side offers a 13/16-16 thread and a 1/2 tube O.D.

This 2-piece assembly ensures secure connections with a 0.378 drill and its overall length measures 1.010 inches. The hex size is 1.125 inches providing ease of installation and maintenance.

Supplier Part Number: FS2406-10-08

Specifications

Brand
BRENNAN
2pc Assy
With Brennan 2-Piece Assembly
a2 Drill Dimensions
0.378 in
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Female ORFS Swivel, Male ORFS
Connection Type 1
Female SAE ORFS Swivel
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J515
Dimensions
1-1/2 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
1-1/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2406 Series
Thread Size
1-14, 13/16-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (2)

Question by: Pete P on May 10, 2025, 9:19 PM
trying to swap out a fitting i’ve got, does this one match FS2406-10-08?
Answer by: Customer Support on May 12, 2025, 9:31 AM
For replacement, the supplier part number for this connector is FS2406-10-08, and it’s in Brennan’s FS2406 series. It also crosses to AFF2281T0810S and FF2406-10-08.
Question by: Travis M on Mar 8, 2026, 6:45 AM
Reckon this'll fit a standard hydraulic setup? Gotta make sure before I order a bunch.
Answer by: Customer Support on Mar 9, 2026, 5:46 PM
This straight connector is part of the FS2406 series from Brennan, designed for robust hydraulic connections. The A1 side features a 1-14 thread and a 5/8 inch tube OD, while the A2 side has a 13/16-16 thread and a 1/2 inch tube OD.
