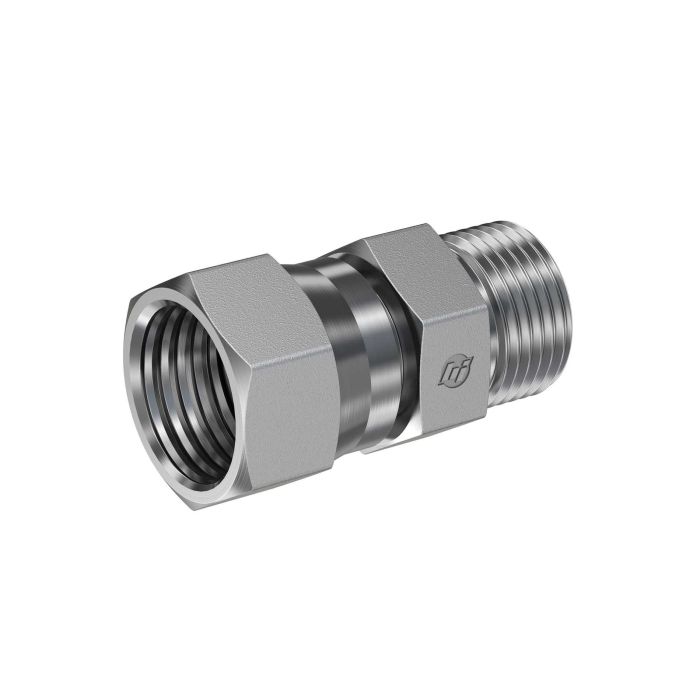

main product photo

10FFS-12MFS STRAIGHT

Ask A Question

Description & Features

Optimize your hydraulic systems with the versatile 10FFS-12MFS STRAIGHT fitting from Brennan Industries. This fitting is engineered to accommodate a wide range of industrial applications, ensuring seamless integration with existing setups. Featuring a 1-14 A1 thread combined with a 1-3/16-12 A2 thread, it is designed for precision and reliability. The fitting is suitable for use with tubes having an outer diameter of 5/8 inch on one end and 3/4 inch on the other, offering flexibility in connecting various components.

Constructed with high-quality materials, the 10FFS-12MFS STRAIGHT fitting ensures durability and long-lasting performance under demanding conditions. Its compact length of 1.063 inches and hex size of 1.125 inches provide ease of installation in tight spaces, making it a practical choice for complex hydraulic assemblies. Trust Brennan Industries for consistent quality and dependable hydraulic solutions.

SKU: FS2406-10-12

Supplier Part Number (MPN): FS2406-10-12

Alternate Part Numbers: AFF2281T1210S, FF2406-10-12

Specifications

Brand
BRENNAN
2pc Assy
Without Brennan 2-Piece Assembly
a2 Drill Dimensions
0.453 in
Connection Size 1
5/8 in
Connection Size 2
3/4 in
Connection Type
Female ORFS Swivel, Male ORFS
Connection Type 1
Female SAE ORFS Swivel
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J515
Dimensions
1.55 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
1-1/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2406 Series
Thread Size
1-3/16-12 x 1-14
Tube Outside Diameter
3/4 in

Product Questions & Answers (1)

Question by: Frank A on Nov 4, 2025, 8:59 AM
got a 5/8 tube on one side and 3/4 on the other, is this the right straight fitting for that?
Answer by: Customer Support on Nov 5, 2025, 9:32 PM
For stepping between those two tube sizes, it matches up as a straight fitting with a 5/8 inch tube OD on the A1 end and a 3/4 inch tube OD on the A2 end.
