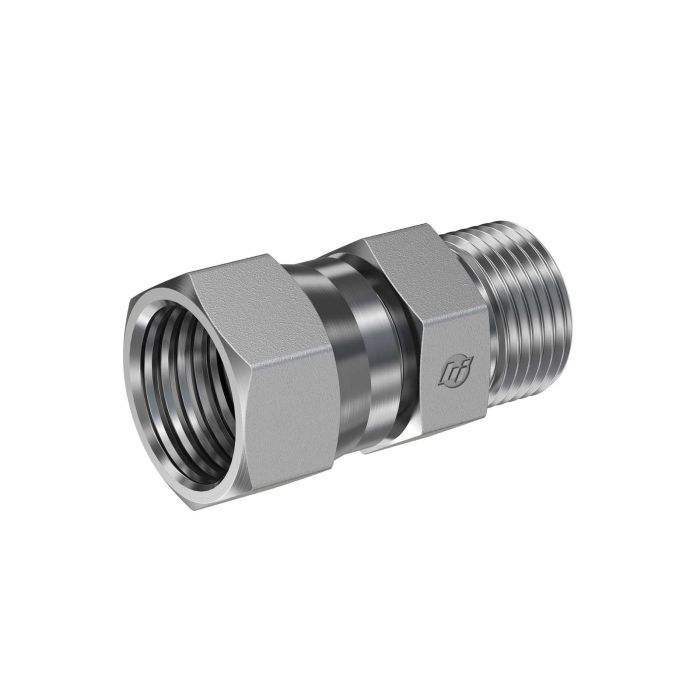

main product photo

12FFSS-08MFS STRAIGHT

Ask A Question

Description & Features

The 12FFSS-08MFS STRAIGHT, part of the FS2406 series, is a straight fitting featuring a Brennan 2Pc Assy design.

This fitting includes a Brennan A1 thread of 1-3/16-12, suitable for a 3/4" tube OD. It also features a Brennan A2 drill size of 0.378" with a 13/16-16 thread, accommodating a 1/2" tube OD. The C Hex measures 1.375", and the L Length is 1.090".

SKU: FS2406-12-08

Supplier Part Number (MPN): FS2406-12-08

Specifications

Brand
BRENNAN
2pc Assy
With Brennan 2-Piece Assembly
a2 Drill Dimensions
0.378 in
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Female ORFS Swivel, Male ORFS
Connection Type 1
Female SAE ORFS Swivel
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J515
Dimensions
1.62 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
1-3/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2406 Series
Thread Size
13/16-16, 1-3/16-12
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (1)

Question by: Terry P on Nov 13, 2025, 1:35 PM
So this fitting has two different tube OD sizes, a 3/4" and a 1/2"? Just want to make sure I'm understanding that right.
Answer by: Customer Support on Nov 15, 2025, 6:04 AM
Yes, that's correct. This straight fitting is designed to accommodate both a 3/4" tube OD on one end and a 1/2" tube OD on the other, making it useful for connecting different sized lines.
