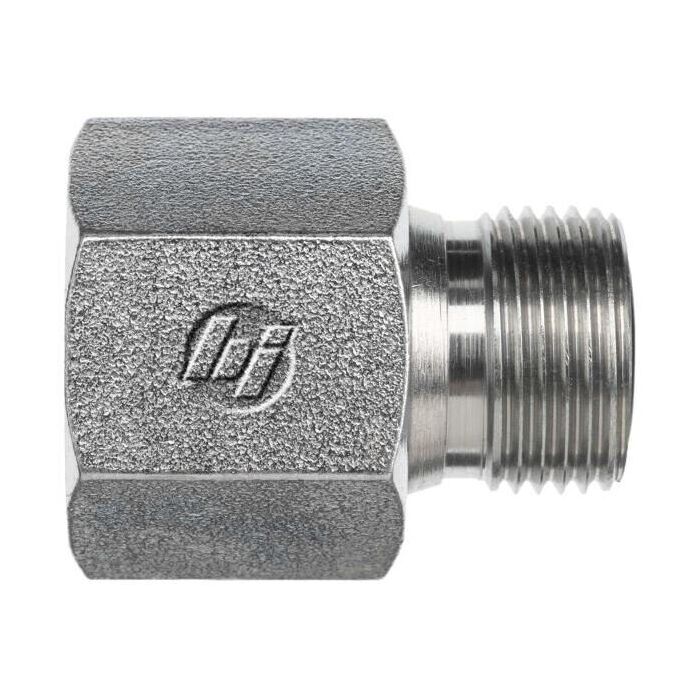

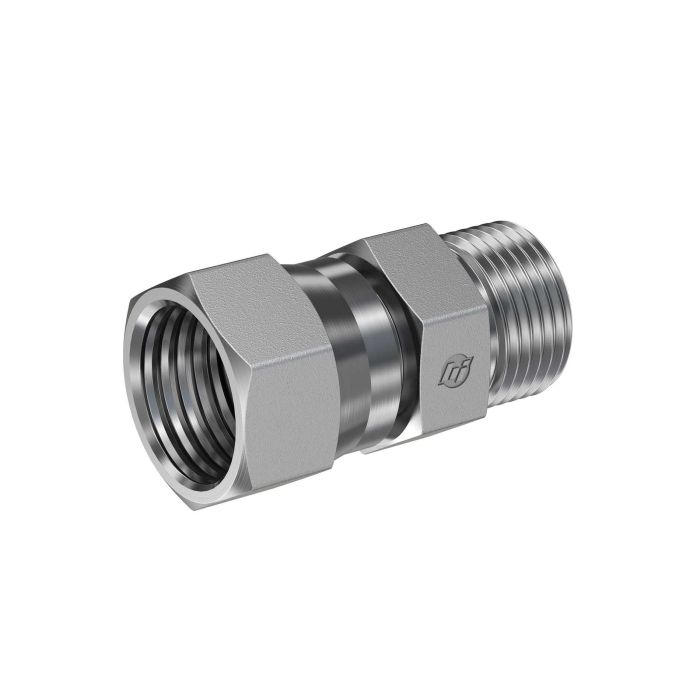

main product photo

ADAPTER

Ask A Question

Description & Features

Manufactured by Brennan Industries Inc this adapter is crafted for industry-specific needs. Featuring a 1-3/16-12 thread on side A1 with a compatible 3/4 inch tube O.D. it ensures a precise fit for specialized applications.

The A2 side includes a 1-14 thread and a 5/8 inch tube O.D. optimized for seamless integration and durability. Enhanced by a 1.375 inch hex size and a compact 1.160 inch length this fitting is designed for efficient and reliable use.

Part of the FS2406 series it includes a 0.484 drill on side A2 supporting consistent performance in demanding environments.

Supplier Part Number: FS2406-12-10

Specifications

Brand
BRENNAN
a2 Drill Dimensions
0.484 in
Connection Size 1
3/4 in
Connection Size 2
5/8 in
Connection Type
Female ORFS Swivel, Male ORFS
Connection Type 1
Female SAE ORFS Swivel
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J515
Dimensions
1.69 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
1-3/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2406 Series
Thread Size
1-3/16-12 x 1-14
Tube Outside Diameter
5/8 in

Product Questions & Answers (1)

Question by: Steve F on Nov 30, 2025, 6:33 PM
part number FS2406-12-10, does side A1 really run a 1-3/16-12 thread, or is that a misprint? trying to match it up with existing lines on a hydraulic setup and want to be sure before ordering.
Answer by: Customer Support on Dec 2, 2025, 3:49 PM
Not a misprint. Side A1 on this adapter carries a 1-3/16-12 thread and pairs with a 3/4 inch tube O.D. That combination is fairly specific, so double-check your existing fittings against both the thread spec and the tube O.D. before pulling the trigger on an order.
