# 20 FORS X #16 MORS

Description & Features

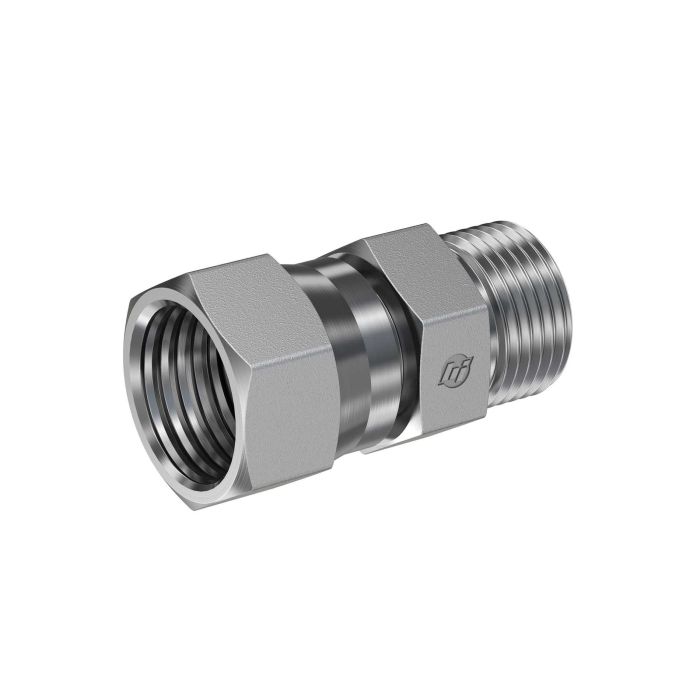

The # 20 FORS X #16 MORS fitting from World Wide Fittings features a straight configuration within the FS2406 series.

It includes a 1-11/16-12 Brennan A1 thread and a 1-7/16-12 Brennan A2 thread, with corresponding tube ODs of 1-1/4 inch and 1 inch, respectively. The A2 drill size is 0.811 inches, and the C hex measures 1.875 inches. The L length is 1.514 inches.

SKU: FS2406-20-16

Supplier Part Number (MPN): FS2406-20-16

Alternate Part Numbers: AFF2281T1620S, FF2406-20-16

Specifications

Brand
BRENNAN
a2 Drill Dimensions
0.811 in
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
Female ORFS Swivel, Male ORFS
Connection Type 1
Female SAE ORFS Swivel
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J515
Dimensions
2.04 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
1-7/8 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2406 Series
Thread Size
1-7/16-12 x 1-11/16-12
Tube Outside Diameter
1 in

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Connection Type 2 Thread Size Hex Size Price Action
16FFS-12MFS STRAIGHT

FF2406-16-12

1 in

Female SAE ORFS Swivel

3/4 in

Male SAE ORFS

1-7/16-12, 1-3/16-12

1-5/8

06FFS-04MFS STRAIGHT

FS2406-06-04

3/8 in

Female SAE ORFS Swivel

1/4 in

Male SAE ORFS

11/16-16, 9/16-18

0.81 in

08FFS-04MFS STRAIGHT

FS2406-08-04

1/2 in

Female SAE ORFS Swivel

1/4 in

Male SAE ORFS

13/16-16 x 9/16-18 x 13/16-16

0.94 in

8FFS-6MFS

FS2406-08-06

1/2 in

Female SAE ORFS Swivel

3/8 in

Male SAE ORFS

13/16-16 x 11/16-16

0.94 in

Brennan FF2281T0610S

FS2406-10-06

5/8 in

Female SAE ORFS Swivel

3/8 in

Male SAE ORFS

11/16-16, 1-14

1-1/8 in

10FFS-08MFS STRAIGHT

FS2406-10-08

5/8 in

Female SAE ORFS Swivel

1/2 in

Male SAE ORFS

1-14, 13/16-16

1-1/8 in

10FFS-12MFS STRAIGHT

FS2406-10-12

5/8 in

Female SAE ORFS Swivel

3/4 in

Male SAE ORFS

1-3/16-12 x 1-14

1-1/8 in

12FFS-04MFS STRAIGHT

FS2406-12-04

3/4 in

Female SAE ORFS Swivel

1/4 in

Male SAE ORFS

9/16-18, 1-3/16-12

1-3/8 in

12FFSS-06MFS STRAIGHT

FS2406-12-06

3/4 in

Female SAE ORFS Swivel

3/8 in

Male SAE ORFS

1-3/16-12 x 11/16-16

1-3/8 in

12FFSS-08MFS STRAIGHT

FS2406-12-08

3/4 in

Female SAE ORFS Swivel

1/2 in

Male SAE ORFS

13/16-16, 1-3/16-12

1-3/8 in

ADAPTER

FS2406-12-10

3/4 in

Female SAE ORFS Swivel

5/8 in

Male SAE ORFS

1-3/16-12 x 1-14

1-3/8 in

12FFS-16MFS STRAIGHT

FS2406-12-16

3/4 in

Female SAE ORFS Swivel

1 in

Male SAE ORFS

1-7/16-12, 1-3/16-12

1-3/8 in

16FFS-10MFS STRAIGHT

FS2406-16-10

1 in

Female SAE ORFS Swivel

5/8 in

Male SAE ORFS

1-7/16-12 x 1-14

1-5/8

16FFS-20MFS STRAIGHT

FS2406-16-20

1 in

Female SAE ORFS Swivel

1-1/4 in

Male SAE ORFS

1-7/16-12 x 1-11/16-12

1-5/8

20FFS-12MFS ST

FS2406-20-12

1-1/4 in

Female SAE ORFS Swivel

3/4 in

Male SAE ORFS

1-3/16-12, 1-11/16-12

1-7/8 in

20FFS-24MFS STRAIGHT

FS2406-20-24

1-1/4 in

Female SAE ORFS Swivel

1-1/2 in

Male SAE ORFS

1-11/16-12 x 2-12

1-7/8 in

24FFS-16MFS ST

FS2406-24-16

1-1/2 in

Female SAE ORFS Swivel

1 in

Male SAE ORFS

1-7/16-12, 2-12

2-1/4 in

#24 FORS X #20 MORS

FS2406-24-20

1-1/2 in

Female SAE ORFS Swivel

1-1/4 in

Male SAE ORFS

1-11/16-12 x 2-12

2-1/4 in

Product Questions & Answers (2)

Question by: Daryl A on Feb 22, 2026, 8:09 PM
what size tubes does this fitting connect exactly, the 1-1/4 and the 1 inch side?
Answer by: Customer Support on Feb 24, 2026, 10:16 AM
Correct on both counts. The larger end handles 1-1/4 inch OD tube with a 1-11/16-12 thread, and the smaller end steps down to 1 inch OD tube on a 1-7/16-12 thread. So yeah, if you're running two different line sizes and need to tie them together straight, that's exactly what this fitting does.
Question by: Roger P on Oct 14, 2025, 6:04 PM
trying to swap out a fitting, is FS2406-20-16 the straight one that goes from a #20 FORS to a #16 MORS?
Answer by: Customer Support on Oct 16, 2025, 6:03 PM
Yes. FS2406-20-16 is a straight FS2406 series fitting with a #20 FORS end using a 1-11/16-12 Brennan A1 thread, and a #16 MORS end using a 1-7/16-12 Brennan A2 thread.
