24FFS-16MFS ST

Description & Features

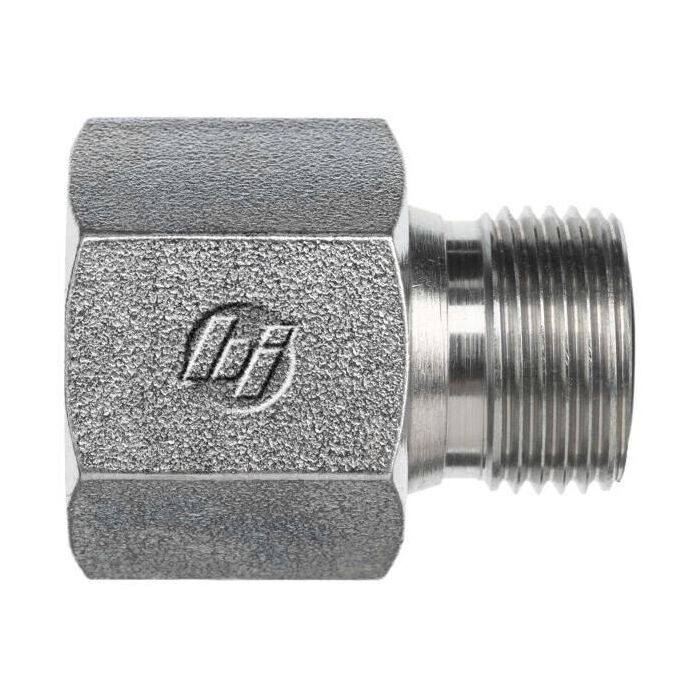

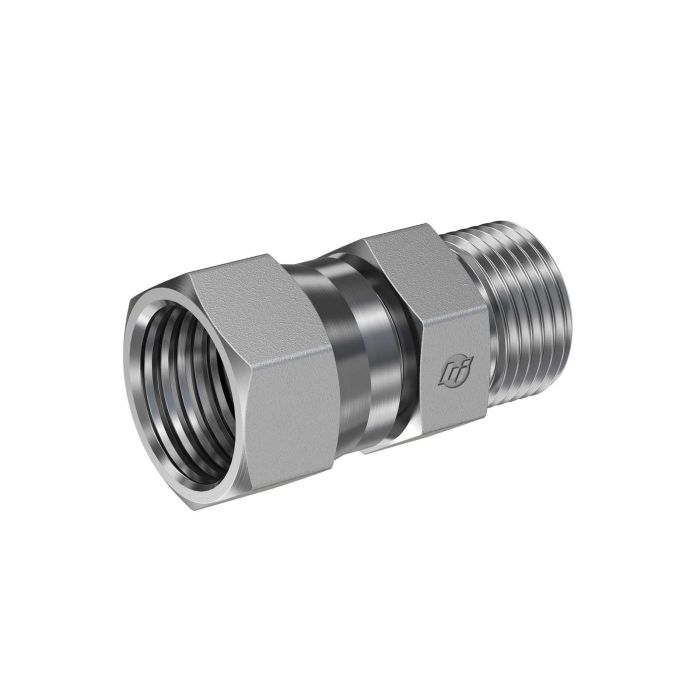

Designed for reliable performance in industrial applications, the 24FFS-16MFS ST fitting from Brennan Industries is a precision-engineered connector, ideal for assembling hydraulic systems. Featuring a 2-piece assembly, this fitting accommodates a 1-1/2" tube outer diameter with a robust 2-12 A1 thread, ensuring a secure fit. The A2 thread measures 1-7/16-12, supporting a 1" tube, while the 0.811" A2 drill offers efficient fluid passage. The fitting's compact design, with a length of 1.340" and a hex size of 2.250", supports easy installation and maintenance in tight spaces.

This fitting is part of the FS2406 series, known for its durability and compatibility in demanding environments. Its male configuration is optimized for secure and leak-free connections in hydraulic systems, providing a dependable solution for industrial fluid transfer needs.

SKU: FS2406-24-16

Supplier Part Number (MPN): FS2406-24-16

Specifications

Brand BRENNAN	2pc Assy With Brennan 2-Piece Assembly	a2 Drill Dimensions 0.811 in	Connection Size 1 1-1/2 in	Connection Size 2 1 in	Connection Type Female ORFS Swivel, Male ORFS	Connection Type 1 Female SAE ORFS Swivel	Connection Type 2 Male SAE ORFS	Dimension Standards SAE J1453, SAE J515	Dimensions 1.87 in L	Finish Trivalent Zinc-Plated	Fitting Type Reducer	Hex Size 2-1/4 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 4000 psi	Operating Temperature -40 to 250 deg F	Series FS2406 Series	Thread Size 1-7/16-12, 2-12	Tube Outside Diameter 1 in

Product Questions & Answers (1)

Question by: Harold T on Dec 10, 2025, 11:54 AM

Hey, just makin' sure -- this'll fit a standard 1 1/2 inch tube, right?

Answer by: Customer Support on Dec 11, 2025, 4:57 PM

this fitting is designed to accommodate a 1-1/2" tube outer diameter with its A1 connection.
