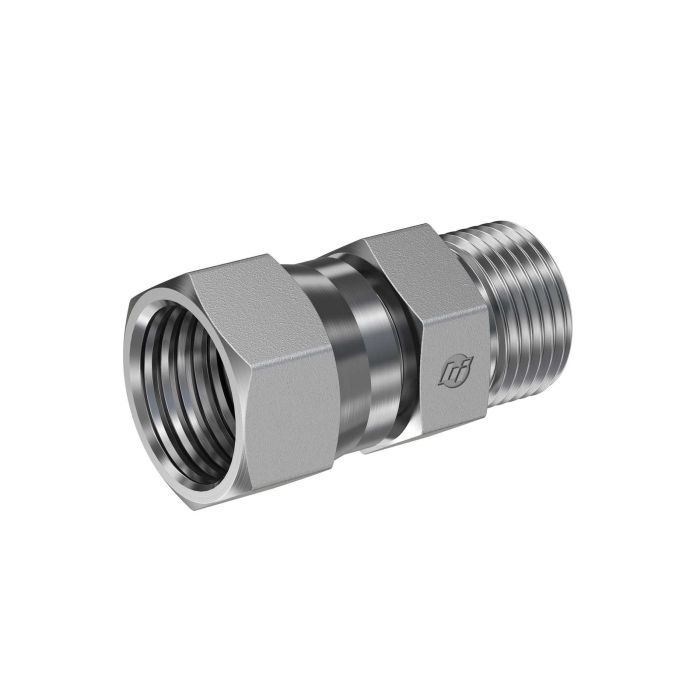

main product photo

#24 FORS X #20 MORS

Ask A Question

Description & Features

A straight hydraulic fitting connecting a #24 female O-ring face seal (FORS) port to a #20 male O-ring face seal (MORS) port, the #24 FORS x #20 MORS is a two-piece assembly manufactured by Brennan Industries. The FORS side carries a 1-1/2 in. tube OD with a 2-12 thread, while the MORS side accommodates a 1-1/4 in. tube OD with a 1-11/16-12 thread and a 1.024 in. drill diameter.

With an overall length of 1.340 in. and a 2.250 in. hex, this fitting is well suited for hydraulic circuit connections requiring a size transition between #24 and #20 O-ring face seal ports. The straight configuration keeps routing straightforward in tight assemblies where adapters must transition between two different port sizes cleanly and reliably.

SKU: FS2406-24-20

Supplier Part Number (MPN): FS2406-24-20

Alternate Part Numbers: AFF2281T2024S

Specifications

Brand
BRENNAN
2pc Assy
With Brennan 2-Piece Assembly
a2 Drill Dimensions
1.024 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/4 in
Connection Type
Female ORFS Swivel, Male ORFS
Connection Type 1
Female SAE ORFS Swivel
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J515
Dimensions
1.87 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
2-1/4 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2406 Series
Thread Size
1-11/16-12 x 2-12
Tube Outside Diameter
1-1/4 in

Product Questions & Answers (1)

Question by: Clint H on Jan 21, 2026, 6:47 AM
What size drill diameter does the #20 MORS side need?
Answer by: Customer Support on Jan 22, 2026, 12:33 PM
It takes a 1.024 inch drill diameter on the #20 MORS side.
