main product photo

20MFS PLUG

Ask A Question

Description & Features

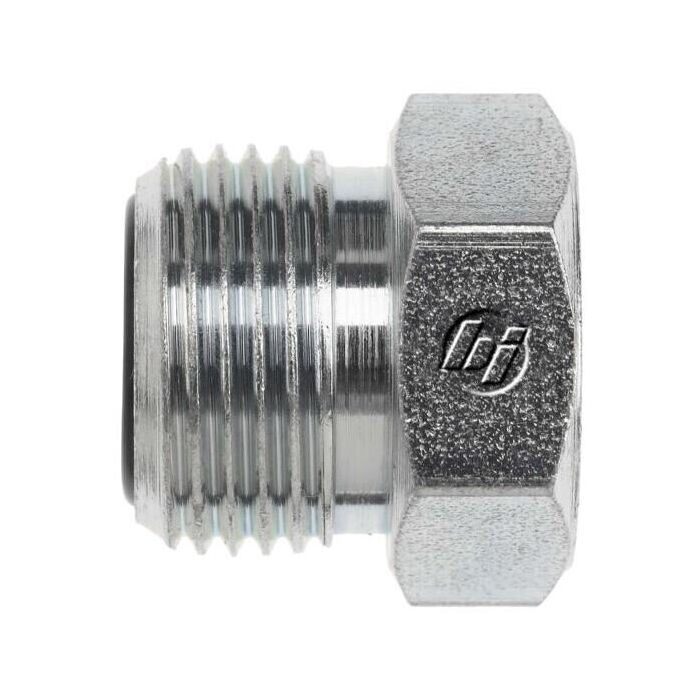

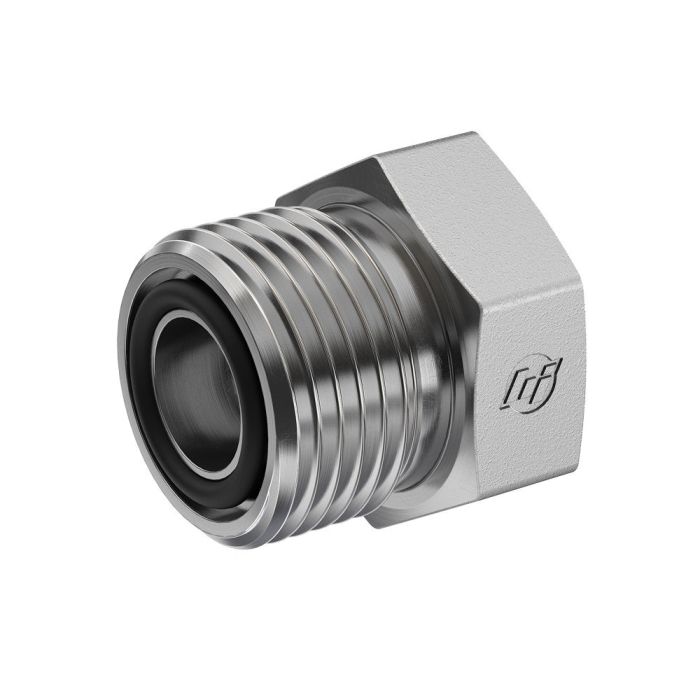

Manufactured by Brennan Industries, this male face seal plug is designed for use in hydraulic systems requiring secure port sealing. The 20Mfs Plug features a 1-11/16-12 thread specification, making it compatible with standard face seal fittings in that size range. With an overall length of 1.099 inches and a 1.750-inch hex, it offers a practical fit for inline port blocking applications where fluid containment and leak-free closure are priorities.

Face seal plugs of this type are commonly used to cap unused ports on hydraulic valves, manifolds, and cylinders, preventing contamination and pressure loss. The hex dimension accommodates standard tooling for secure installation and removal in tight assemblies.

SKU: FS2408-20

Supplier Part Number (MPN): FS2408-20

Alternate Part Numbers: AFF9767-20S, FF2408-20

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Dimension Standards
SAE J1453
Dimensions
1.1 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Plug
Hex Size
1-3/4 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2408 Series
Thread Size
1-11/16-12

Product Questions & Answers (1)

Question by: Larry B on May 11, 2025, 8:24 PM
Just to be clear, this seals a port, right? Like if I got a valve with an extra hole I don't need?
Answer by: Customer Support on May 13, 2025, 10:41 AM
That's exactly right. This male face seal plug is designed for capping off unused ports on hydraulic components such as valves, manifolds, and cylinders. It creates a secure, leak-free closure to prevent contamination and pressure loss.
