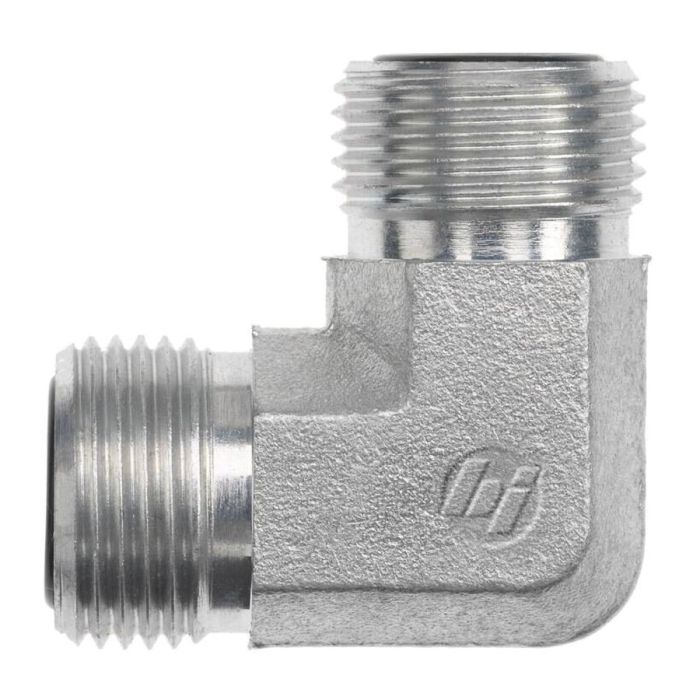

10MFS-10MFS 90 DEG ELBOW FORGED

Forged construction gives this 90-degree elbow the structural integrity suited to demanding hydraulic line routing applications. The 10MFS-10MFS 90 Deg Elbow Forged connects two 5/8" OD tube ends using 1-14 straight thread on both ports, with a 0.484" drill diameter at each end. Both legs share equal dimensions, 1.31" in length, making it a symmetrical fitting well suited for tight-angle installations where consistent thread engagement on both sides matters. The 1.062" jaw flat measurement supports standard wrench access during assembly.

Manufactured by Brennan Industries under the FS2500-FG series, this fitting is designed for male-to-male straight thread connections in a forged body configuration. The forged construction, rather than cast or machined from bar stock, typically results in a denser grain structure suited to high-cycle hydraulic service.

SKU: FS2500-10-10-FG

Supplier Part Number (MPN): FS2500-10-10-FG

Alternate Part Numbers: AFF2035T1010S, FF2500-10-10, FS2500-10-10
